Solder Paste Printer | Dek

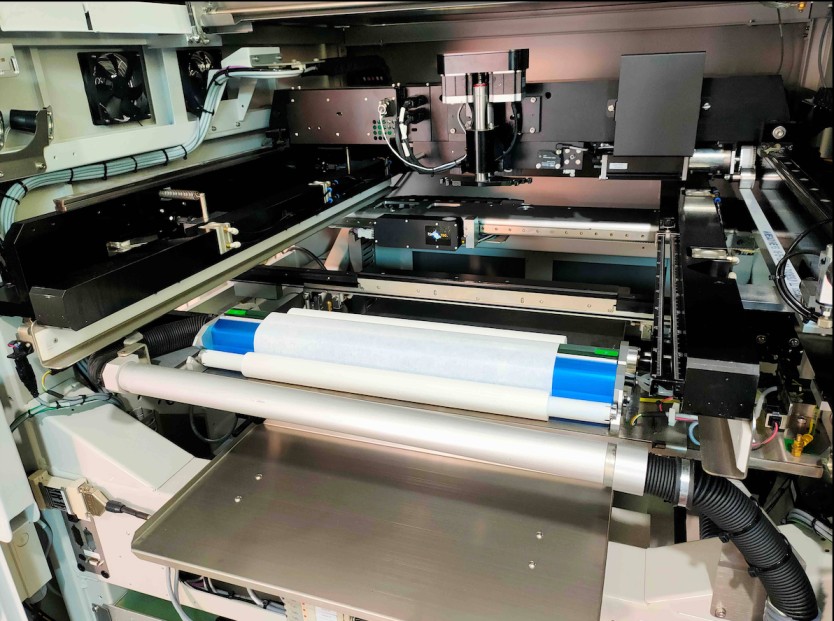

The DEK NEO Horizon 03iX (2022 vintage) is a high-performance fully automatic solder paste printer designed for precision, repeatability, and process control in modern SMT production lines. Built on DEK’s proven Horizon platform, the NEO 03iX integrates advanced vision alignment, programmable print parameters, and closed-loop process control to ensure consistent solder paste deposition across fine-pitch and high-density PCBs. This machine supports high-mix and high-volume production environments, making it ideal for automotive electronics, telecom boards, LED assemblies, industrial control PCBs, and advanced consumer electronics manufacturing. With its rigid frame structure, high-speed alignment system, and intelligent print head control, the NEO 03iX delivers stable printing performance and minimal variation between cycles. Tested and production-ready, suitable for integration into standard left-to-right SMT production lines.
Direct inquiry to administrator
| Parameter | Description / Value |
|---|---|
| Cycle Time | Approx. 8–12 seconds (excluding print process) |
| PCB Size Range | Up to 510 × 508 mm |
| Stencil Frame Size | Up to 736 × 736 mm |
| Vision System | High-resolution digital camera system |
| Alignment System | Fiducial recognition with programmable offset correction |
| PCB Support | Vacuum + magnetic support options |
| Squeegee System | Programmable pressure and speed control |
| PCB Flow Direction | Left to Right |
High precision stencil alignment
Stable closed-loop print control
Suitable for fine-pitch and micro BGA printing
Rigid platform for repeatability
High-speed production capability
Ideal for automotive and high-reliability PCBA production
