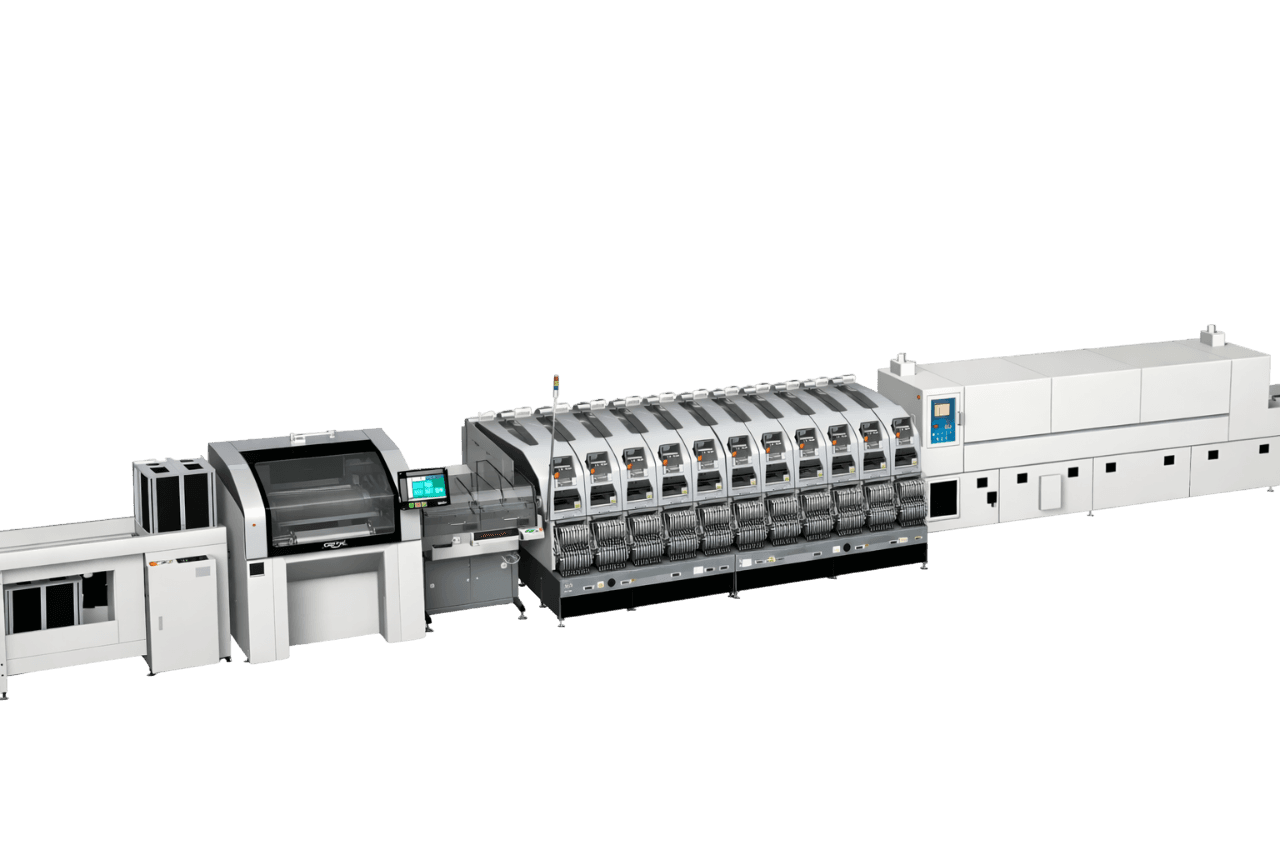

Entry Level SMT Production Line Stable Automation
Up to 20,000 CPH • Compact Layout • Modular Scalability
Up to 20,000 CPHCompact LayoutModular Scalability
Suitable for low to medium production volumes while maintaining placement accuracy and consistent process stability.
Line Overview
This entry-level SMT production line provides stable automation with modular scalability. It is suitable for low to medium production volumes while maintaining placement accuracy and consistent process stability.
Each configuration is structured around:
- PCB complexity
- Target throughput (CPH)
- Available production floor space
- Future expansion planning
Typical SMT Line Structure
LoaderScreen PrinterPick & PlaceReflow OvenAOIUnloader
Peripheral selection and layout adjustments can be configured based on operational requirements.
Performance Snapshot
Maximum Placement Speed
Up to 20,000 CPH
Component Capability
0402 standard
PCB Size Support
Standard industrial PCB size ranges
Line Footprint
Compact and space-efficient
