Solder Paste Printer | Dek

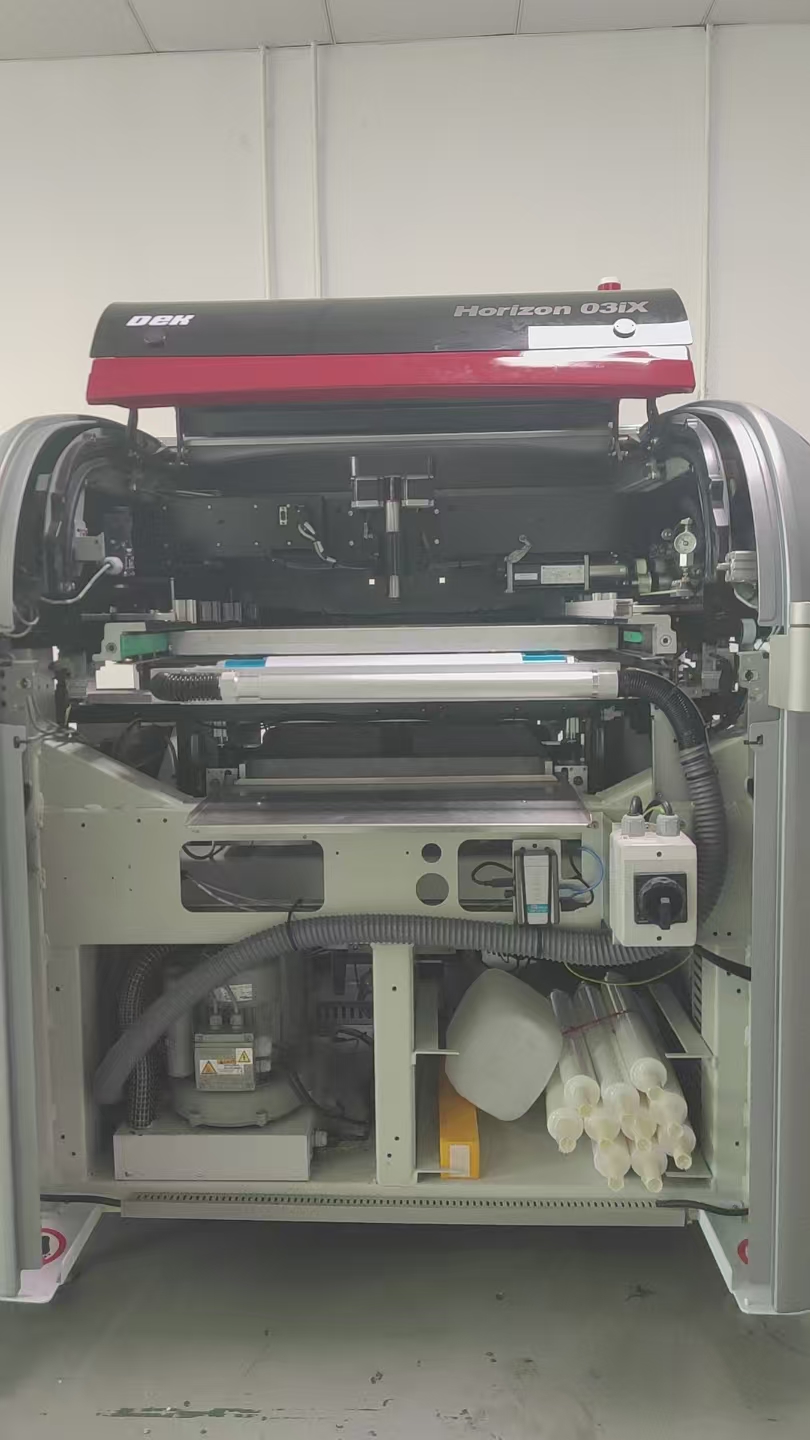

The DEK Horizon 03iX is a fully automatic solder paste printer engineered for high-accuracy stencil printing in SMT production lines. Equipped with advanced vision alignment systems and programmable print parameters, the 03iX ensures consistent solder paste deposition across complex PCB assemblies. The system supports fine-pitch components and high-density PCB layouts, making it suitable for both high-mix and medium-to-high volume manufacturing environments. With precision board clamping, automatic stencil alignment, and programmable print control, the Horizon 03iX delivers reliable and repeatable print quality. Widely used in EMS and OEM production facilities, the DEK Horizon 03iX is known for stability, precision, and ease of operation.
Direct inquiry to administrator
| Parameter | Description / Value |
|---|---|
| Print Area | Up to 510 × 510 mm |
| PCB Size Range | 50 × 50 mm to 510 × 510 mm |
| Placement Accuracy | ±12.5 µm @ 6σ |
| Alignment System | Vision Alignment (2D) |
| Cycle Time | Approx. 15–20 seconds (board dependent) |
Automatic stencil alignment
High-precision vision system
Stable solder paste deposition
Programmable print parameters
Fine-pitch capable
High repeatability performance
Industrial SMT integration
Double squeegee support
