Pick and Place | Panasonic

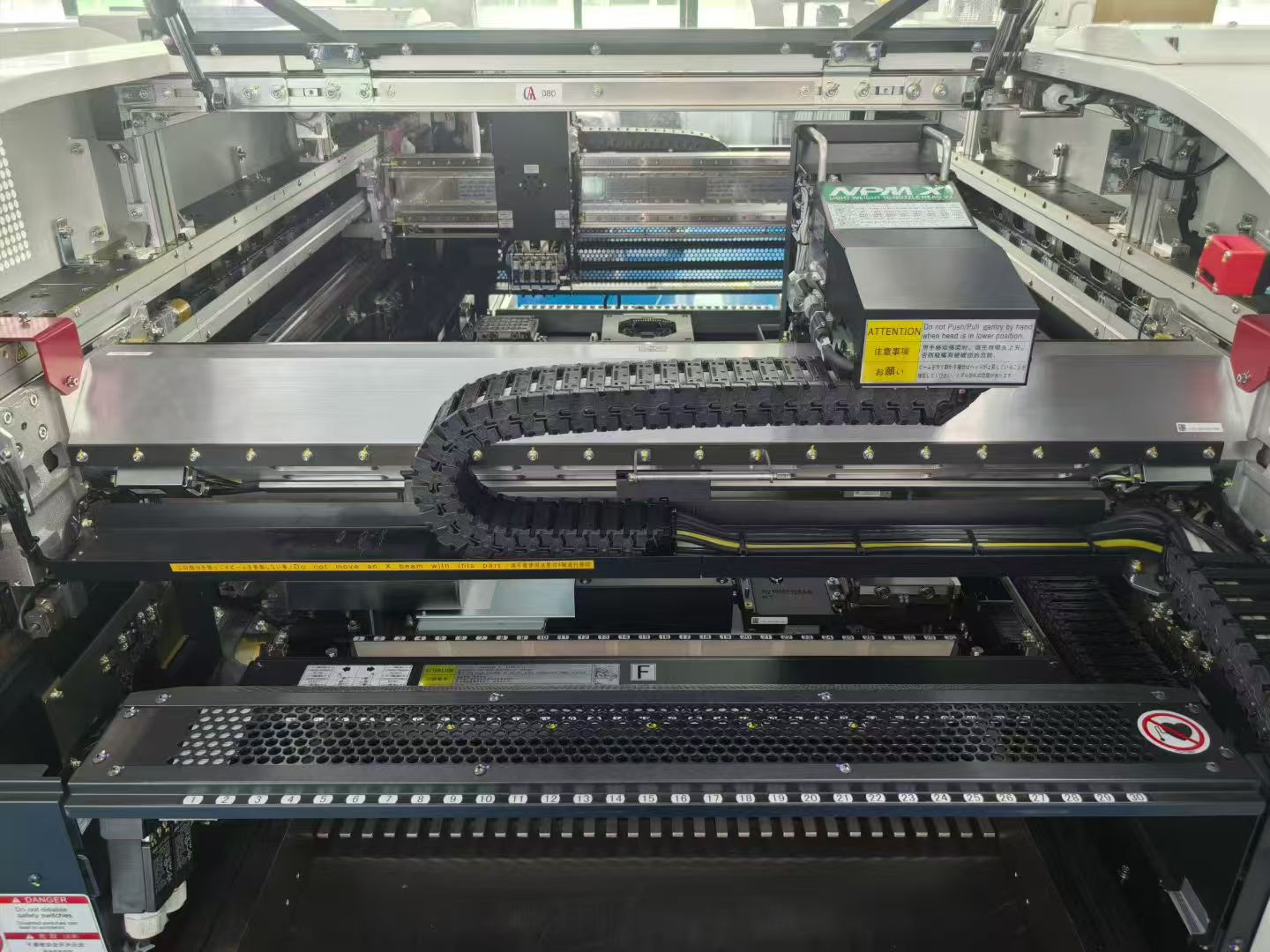

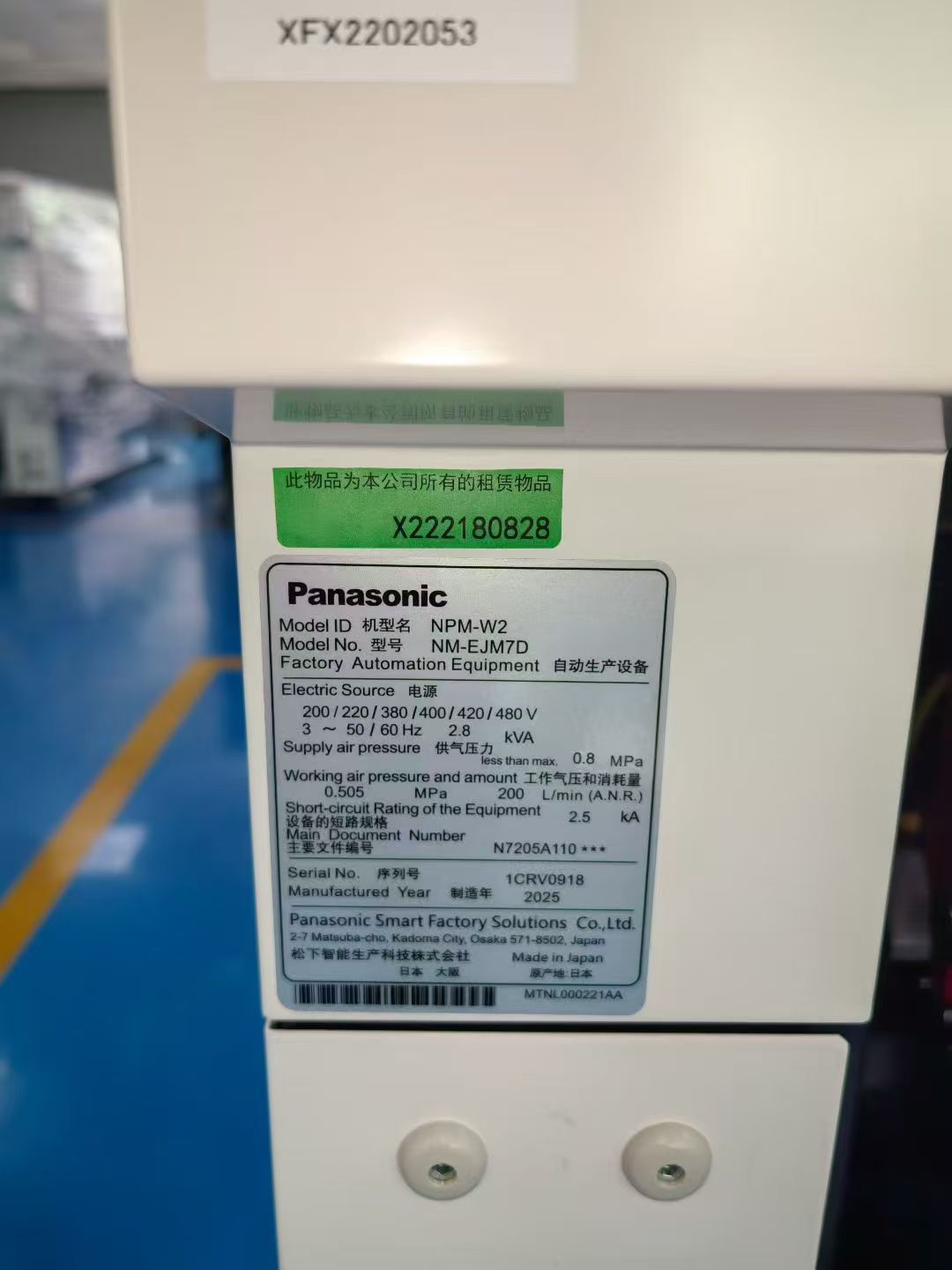

The Panasonic NPM-W2 (2025) configured with the green high-speed head is designed for ultra-fast chip placement in high-volume SMT manufacturing environments. This configuration utilizes the dual-beam high-speed head, optimized for small component production and maximum throughput. The system delivers stable high-speed mounting performance while maintaining excellent placement accuracy. Ideal for EMS and OEM manufacturers focused on chip-dense PCB assemblies requiring speed, reliability, and high feeder capacity.
Direct inquiry to administrator
| Parameter | Description / Value |
|---|---|
| Rated Mounting Speed | Up to 92,000 CPH (Dual-beam High-Speed Head) |
| Practical Mounting Speed | 64,000 – 68,000 CPH (IPC-9850 standard) |

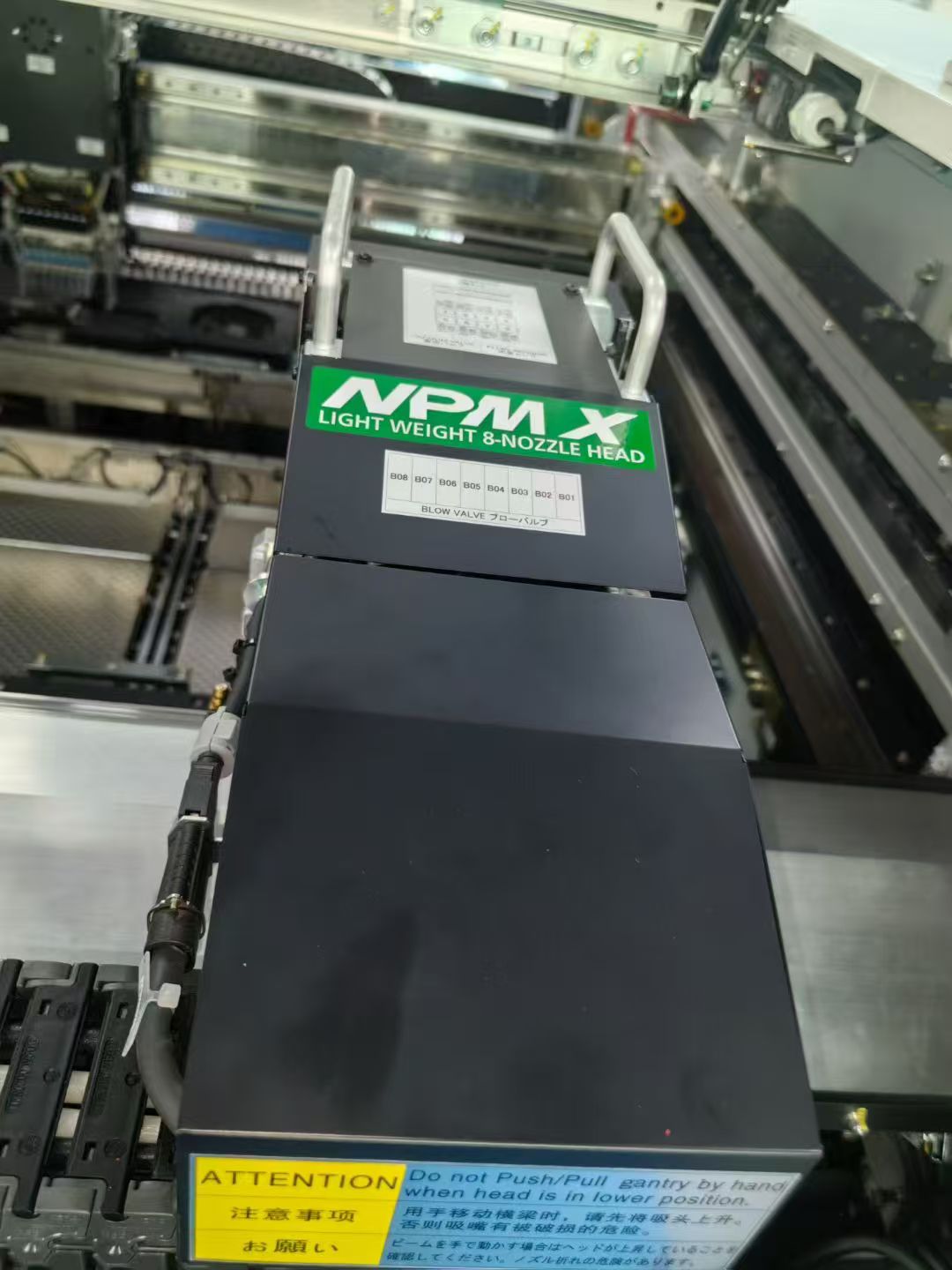

| Head Type | Dual-beam High-Speed Head (Green Type) |
| Placement Accuracy (3σ) | ±0.03 mm |
| Component Range | 0201 to 6.5 mm |
| Feeder Capacity | Up to 120 (8 mm equivalent) |
Dual-beam high-speed placement
Green high-speed head configuration
Ultra-fast chip mounting
High feeder density support
Dual-lane production capability
High accuracy 0201 placement
Stable high-volume throughput
