PANASONIC NPM-DX PICK & PLACE MACHINE 2019

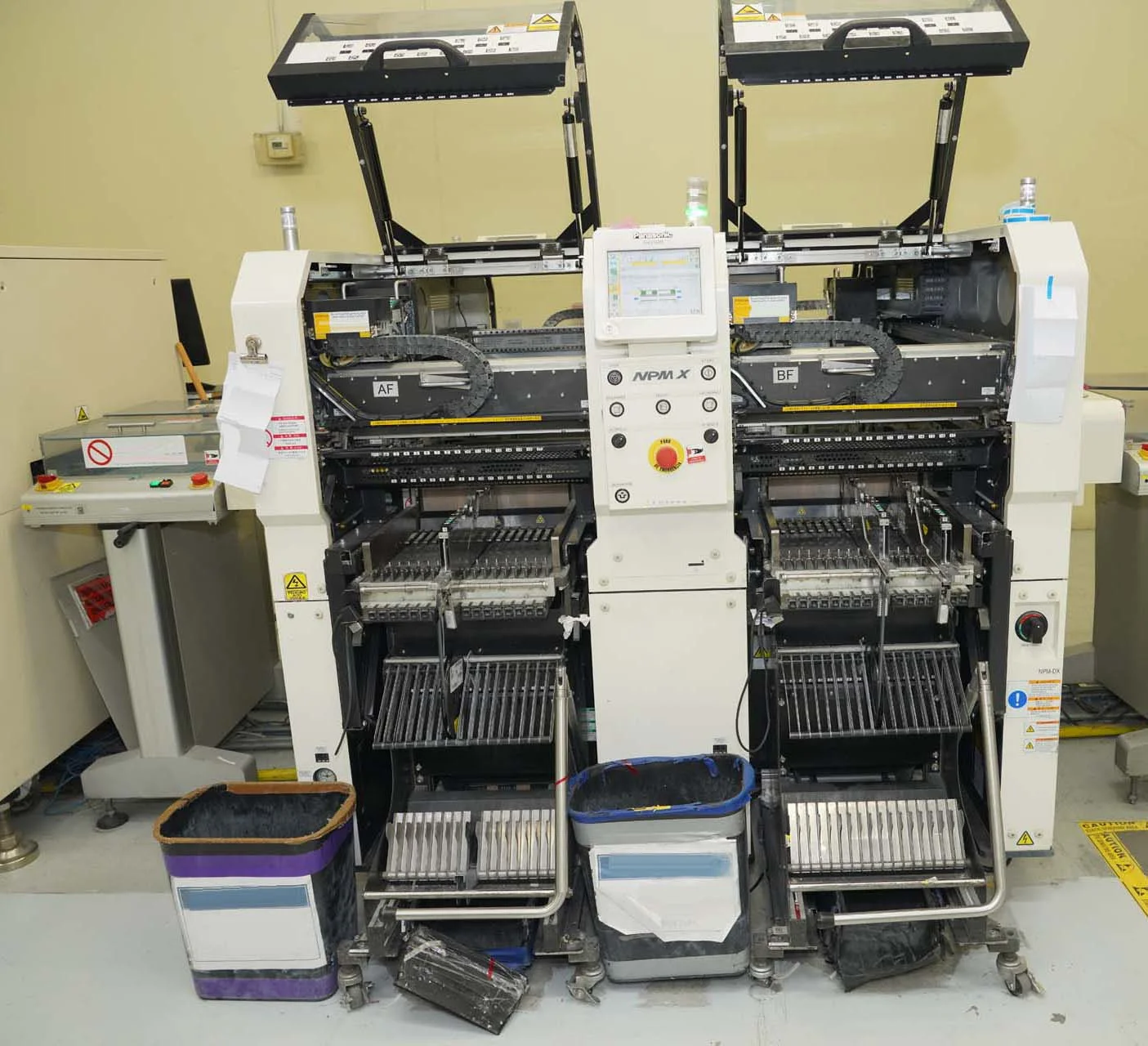

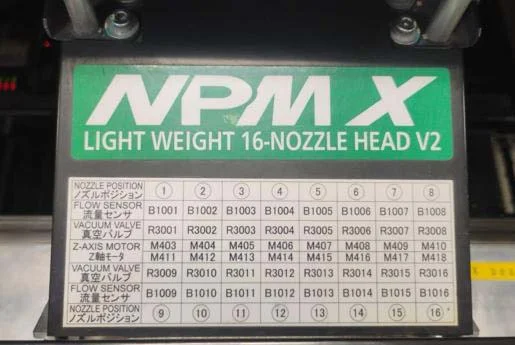

The Panasonic NPM-DX (2019 vintage) is a premium dual-beam modular pick & place platform engineered for advanced SMT manufacturing environments. This unit is configured with a 4-head combination: AF16, AR16, BF16 (high-speed heads) and BR8 (multifunction head), providing a strong balance between ultra-fast chip mounting and larger component capability. The configuration supports: • High-Speed Heads (AF16 / AR16 / BF16) for rapid chip placement from 0201 up to approximately 6.5 mm components • BR8 Multi-Function Head for larger ICs, connectors, and odd-shaped components up to 150 × 25 mm, height up to 28 mm This unit includes the dual-beam mounting platform, AF16 / AR16 / BF16 / BR8 head assemblies, advanced multi-vision alignment system, high-capacity feeder base units, complete nozzle set, and standard signal cables, ensuring full production readiness and seamless SMT line integration. With this 3 high-speed + 1 multifunction head setup: • Rated mounting speed is realistically around 80,000–85,000 CPH (configuration dependent) • Practical IPC-9850 throughput typically operates around 55,000–65,000 CPH, depending on PCB complexity, feeder layout, and component mix This makes it a strong hybrid production platform, capable of handling both dense chip boards and complex assemblies within a single machine. Configured for standard left-to-right PCB flow SMT line integration.
