PANASONIC NPM-D3 PICK & PLACE MACHINE 2019 (16 + 16 HEAD)

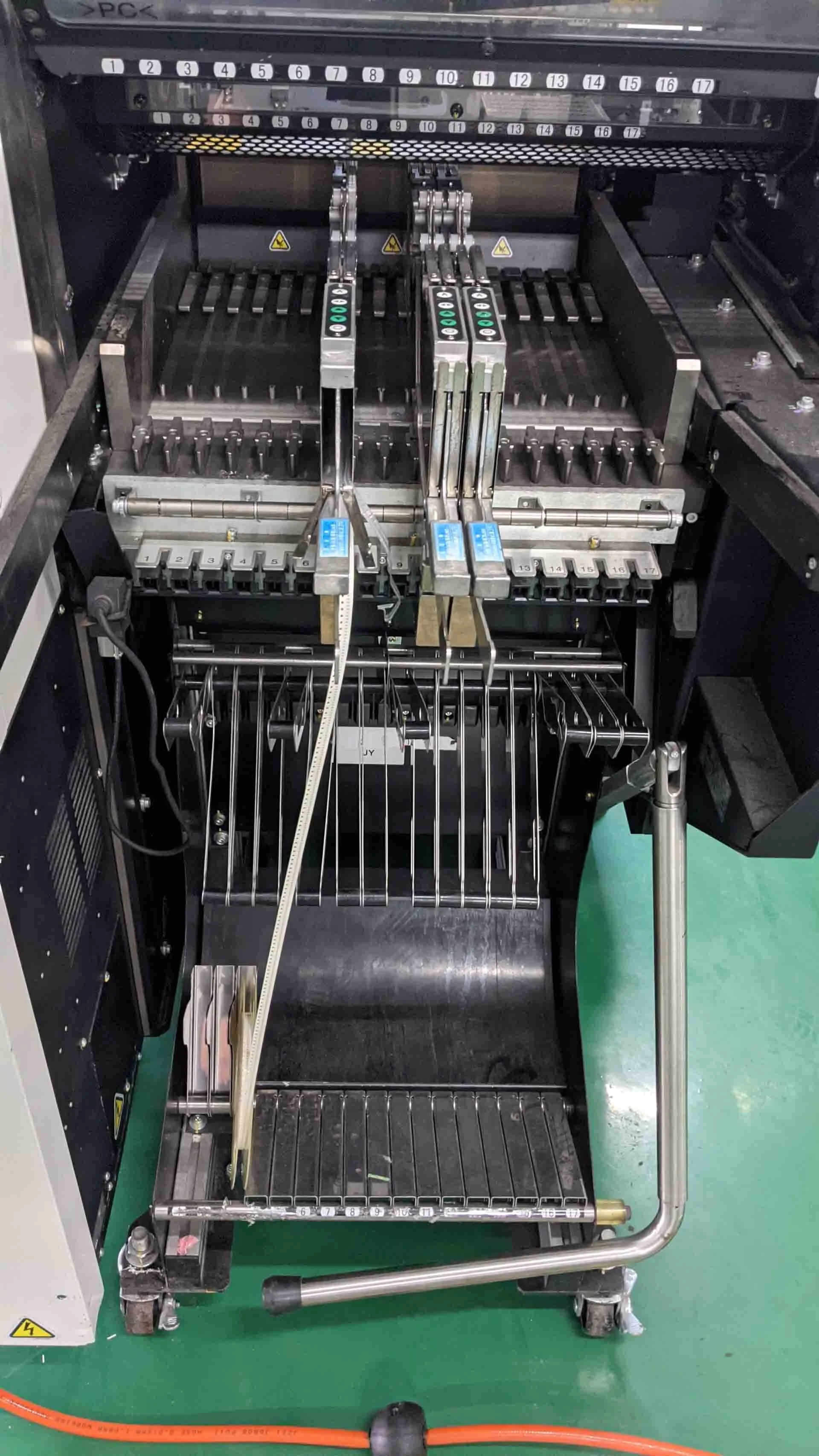

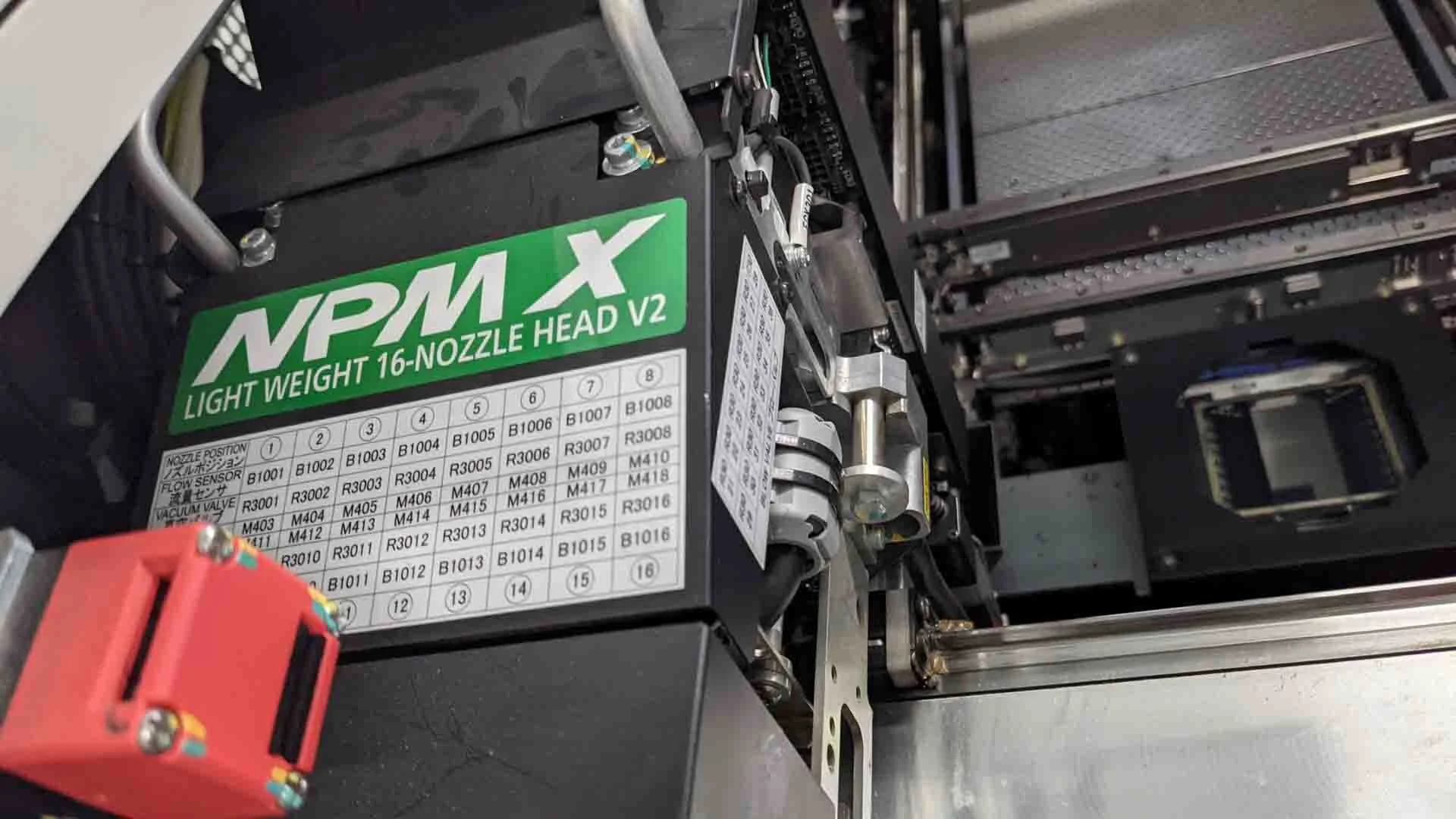

The Panasonic NPM-D3 (2019 vintage) is a high-performance dual-beam modular pick & place machine designed for advanced high-volume SMT production environments. This configuration features 16 + 16 head setup (32 total nozzles across dual beams), enabling extremely high chip placement throughput while maintaining stable placement accuracy. The dual-beam architecture allows simultaneous mounting operations, improving productivity and line balance. This unit includes the 16 + 16 head configuration, advanced multi-vision alignment system, feeder base units with high feeder density support, complete nozzle set, and standard signal cables, ensuring full production readiness and seamless SMT line integration. The NPM-D3 platform supports component handling from micro passives up to larger IC packages depending on head configuration. While rated mounting speed can reach approximately 84,000 CPH, realistic shop-floor throughput typically operates around 40,000–50,000 CPH, depending on PCB complexity, feeder setup, and component mix. With strong feeder capacity, modular scalability, and stable mechanical structure, the NPM-D3 is well-suited for automotive, industrial, telecom, and high-density production environments. Configured for standard left-to-right PCB flow SMT line integration.
