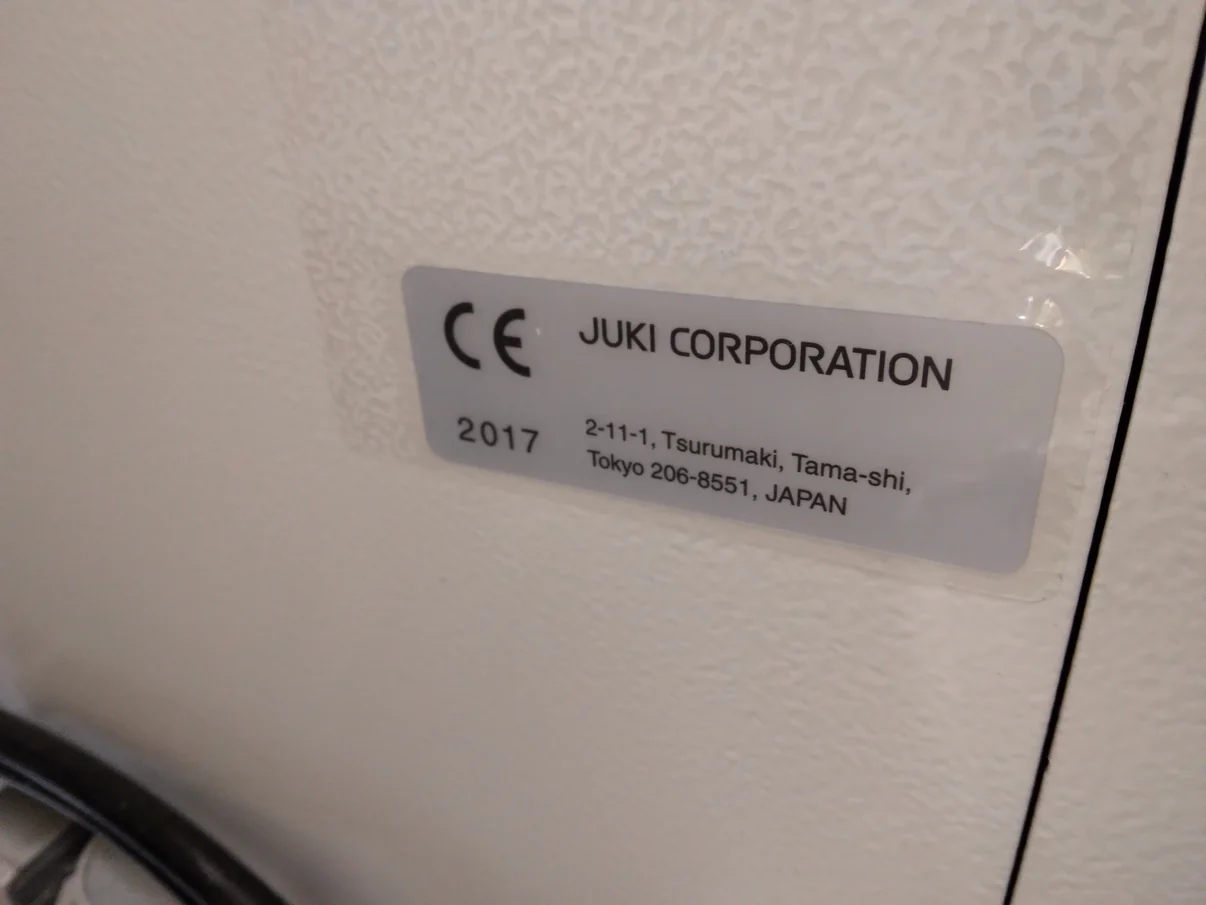

Juki KE3010AL High-Flex Pick & Place Machine – 2017

Juki KE3010AL High-Flex Pick & Place Machine – 2017

Pick and Place | Juki

Used

Description

The Juki KE3010AL is part of Juki’s flexible modular KE-3000 series, designed to handle both high-speed chip placement and precision IC mounting on the same machine. The “AL” configuration provides enhanced board size capability and feeder flexibility, making it suitable for diverse product assemblies. This 2017 vintage unit offers stable performance, strong feeder capacity, and reliable vision alignment. It is ideal for EMS and OEM manufacturers handling mixed production such as industrial controls, LED drivers, telecom boards, and automotive electronics. Machine tested and ready for integration into left-to-right SMT production lines.

Request Quote

Direct inquiry to administrator

Stock Status

Technical Specifications

Parameter	Description / Value
Placement Speed (Rated)	Up to 46,000 CPH
Practical Speed	28,000 to 35,000 CPH
Placement Accuracy	±40 microns (Cpk ≥1.0)
Component Range	0201 mm to 33.5 mm square components
PCB Size Range	Up to 800 × 360 mm (AL configuration)
Feeder Type	Juki Electronic Feeders
PCB Flow Direction	Left to Right
Vision System	Laser alignment + vision system
Head Type	Multifunction placement head

Key Performance Features

Chip and IC placement in one machine

High-mix production capability

Stable laser centering system

Compact modular design

Strong feeder support for multiple SKUs

Suitable for EMS high-variation manufacturing

Easy line integration
