JUKI KE 2080E PICK AND PLACE MACHINE 2013

JUKI KE 2080E PICK AND PLACE MACHINE 2013

Pick and Place | Juki

Used

Description

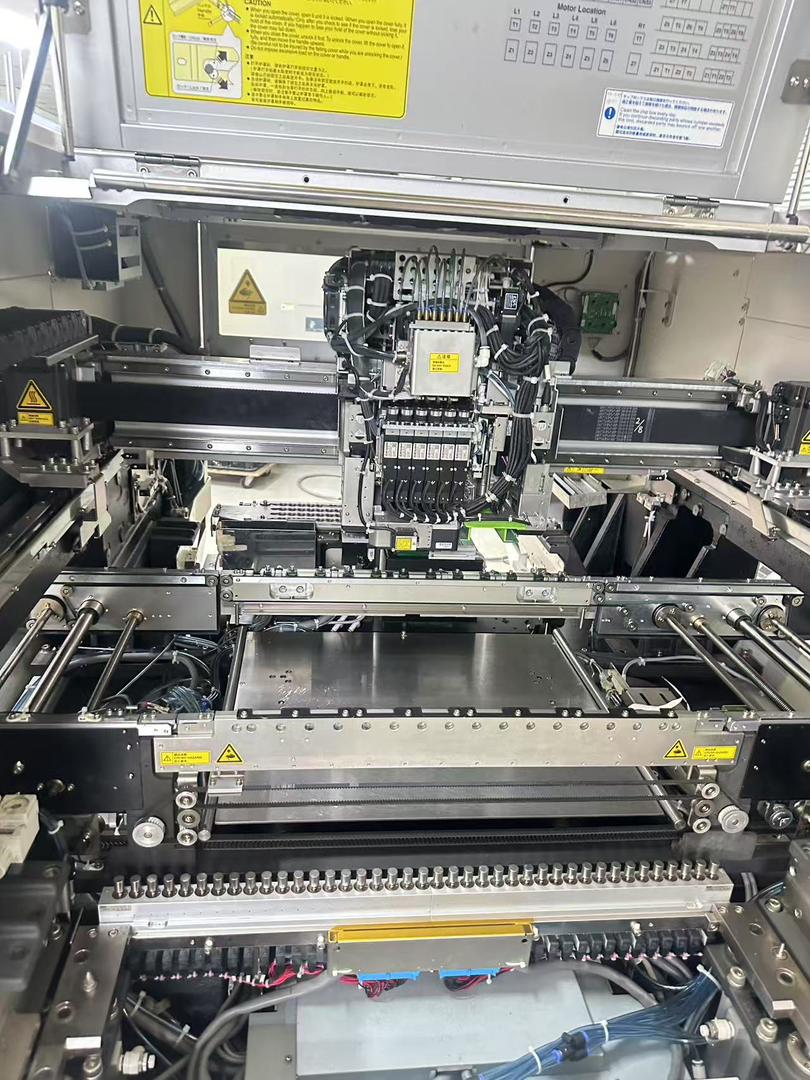

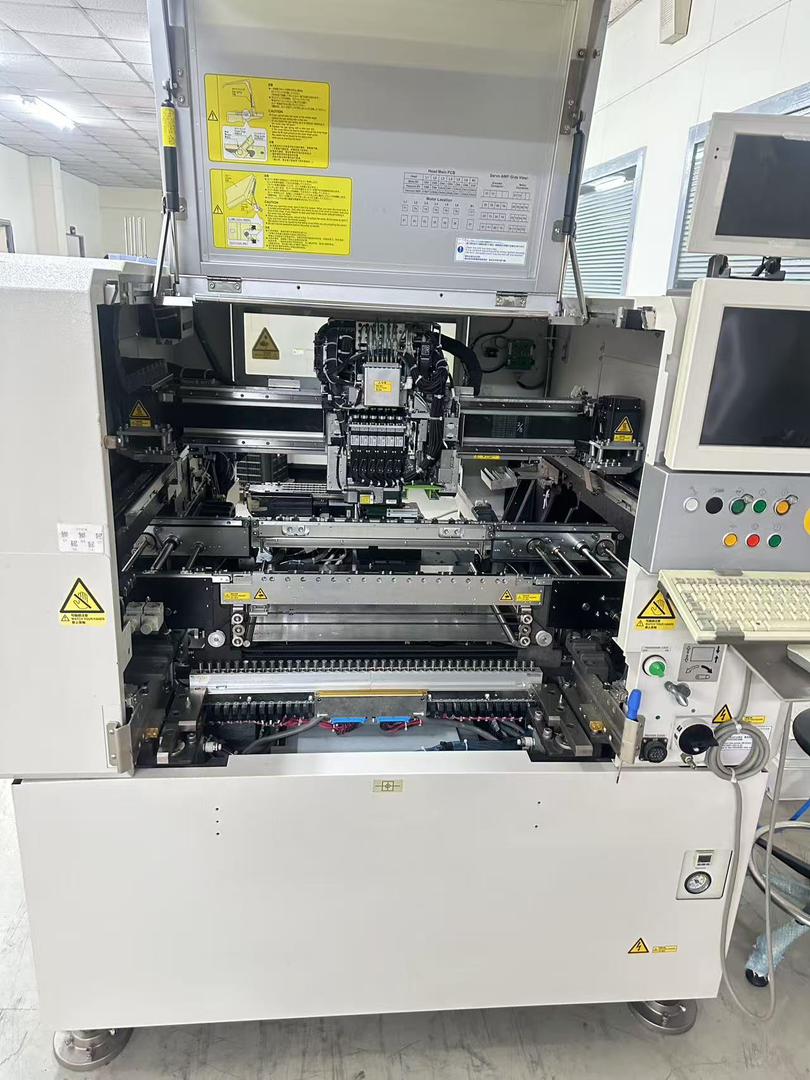

The JUKI KE 2080E is a versatile and reliable pick and place machine designed for medium-speed SMT production. Equipped with a multi-nozzle laser head and an additional high-resolution vision head, the KE 2080E delivers consistent placement accuracy for both chip components and larger ICs. This system supports a wide component range from small chip components to large connectors and odd-form parts. Its flexible feeder capacity and board handling options make it suitable for EMS and OEM manufacturers requiring stable and cost-effective production performance. The KE 2080E remains a dependable solution for manufacturers seeking precision placement with proven JUKI reliability.

Request Quote

Direct inquiry to administrator

Stock Status

Technical Specifications

Parameter	Description / Value
Rated Mounting Speed (Optimum)	20,200 CPH (chip placement, laser centering)
Practical Mounting Speed (IPC-9850)	16,700 CPH
Placement Accuracy (3σ)	±0.05 mm (laser)
Head Configuration	1 Multi-nozzle Laser Head (6 nozzles) + 1 Vision Head (1 nozzle)
Component Range	0402 (01005 metric) to 74 mm square or 50 × 150 mm
Board Size	510 × 460 mm
Feeder Capacity (8 mm tape	Up to 80 feeders (RF feeders compatible)

Key Performance Features

Laser and vision centering system

Multi-nozzle chip placement head

High-resolution IC placement head

Wide component handling range

Flexible PCB size options

Stable medium-speed performance

Proven JUKI platform reliability
