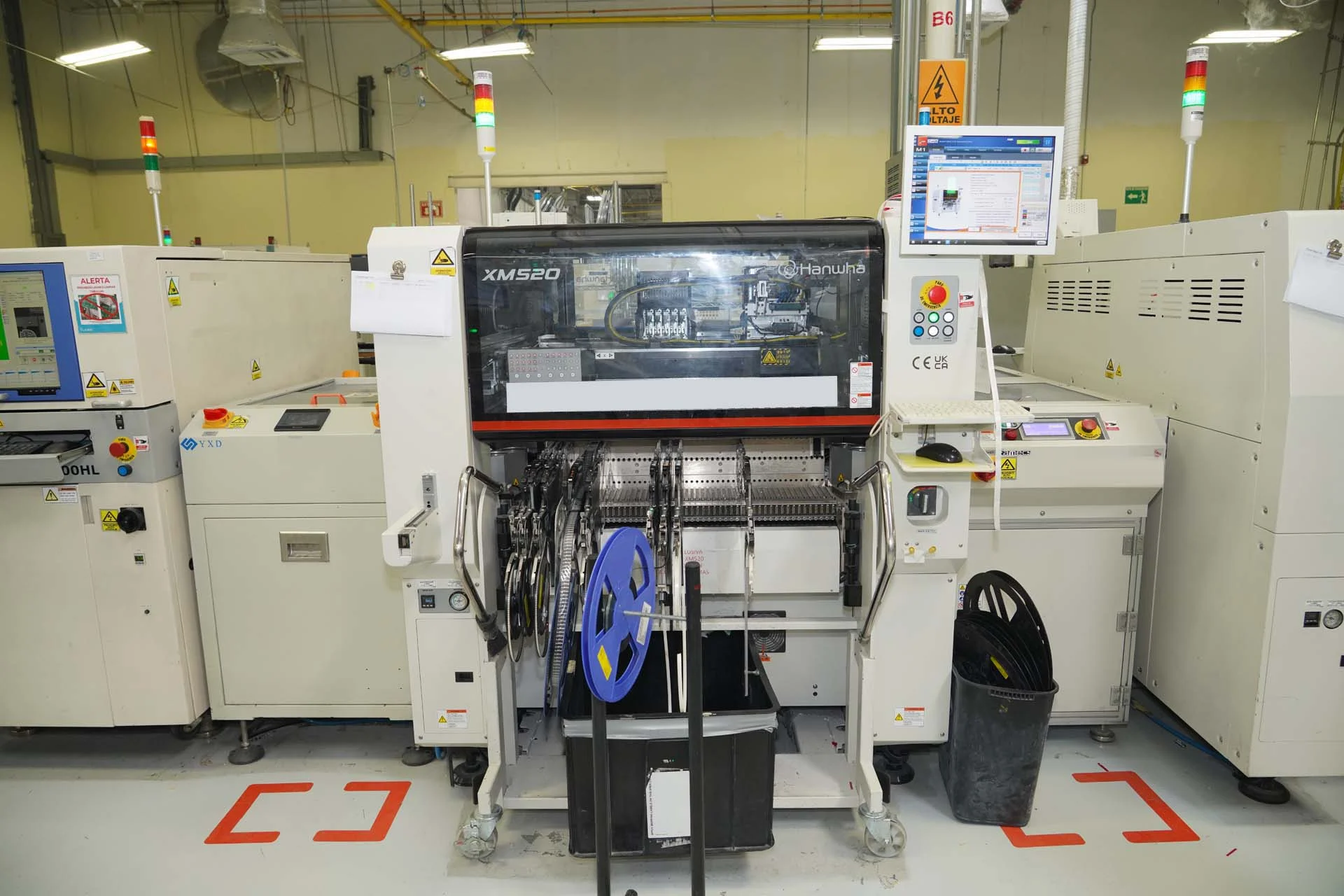

HANWHA XM520 PICK & PLACE MACHINE 2023

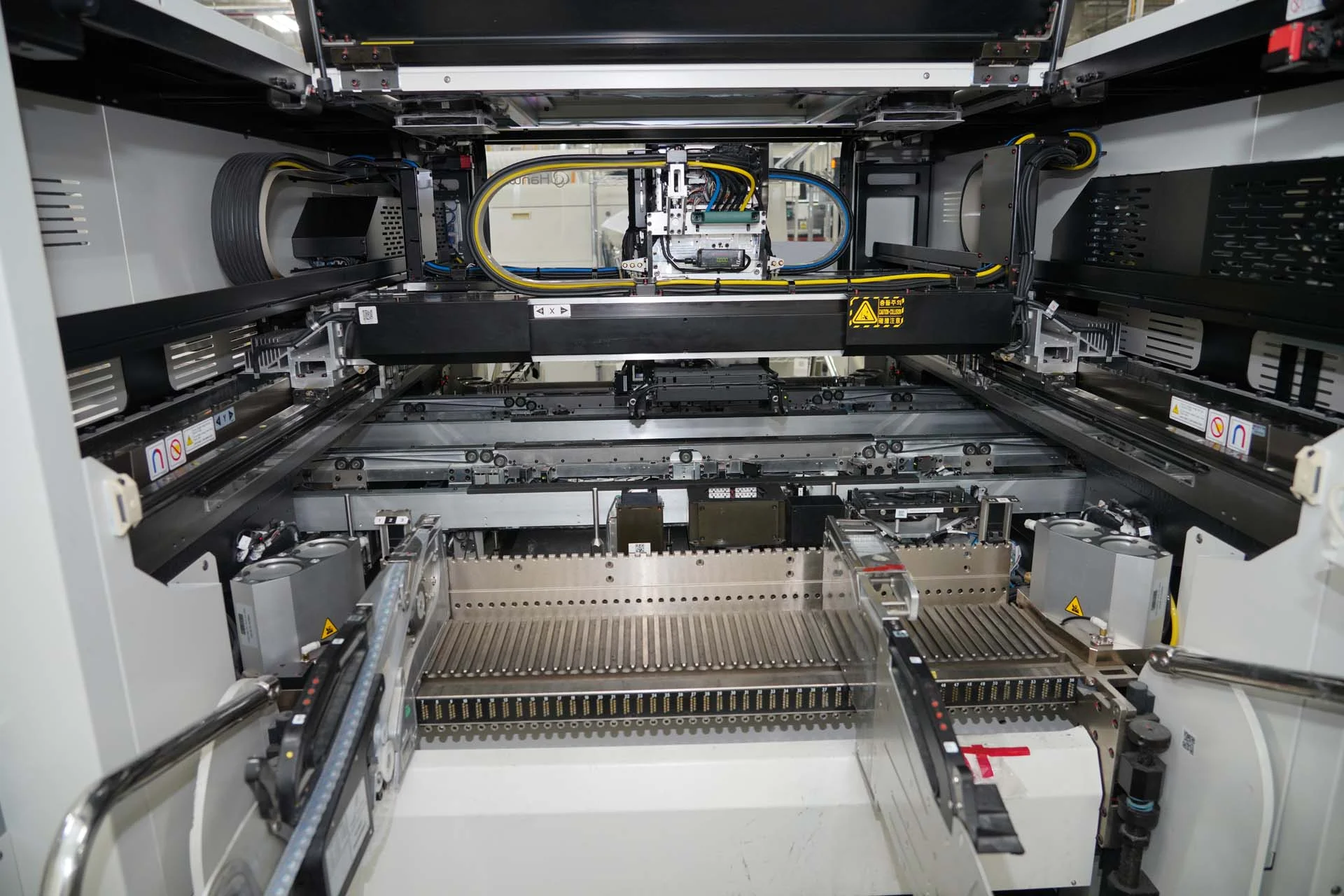

The Hanwha XM520 (2023 vintage) is a high-performance dual gantry modular pick & place machine engineered for advanced SMT production environments requiring both speed and flexibility. This configuration features Dual Gantry × 10 spindles, enabling high mounting throughput with stable placement accuracy. The machine supports component handling from 0201 chips up to 55 mm components (flying vision) and up to 150 × 55 mm connectors using stage vision, with maximum component height up to 15 mm. This unit includes the dual gantry head system, flying vision system with optional stage vision capability, high-capacity feeder base (fixed or docking cart), complete nozzle set, and standard signal cables, ensuring full production readiness and seamless SMT line integration. While the rated mounting speed reaches 100,000 CPH, realistic IPC-9850 practical throughput typically operates around 60,000–65,000 CPH, depending on PCB complexity, feeder configuration, and programming efficiency. With support for large PCB sizes and strong feeder density, the XM520 is suitable for high-volume and high-mix industrial production environments. Configured for standard left-to-right PCB flow SMT line integration.
