HANWHA SM-482 PLUS PICK & PLACE MACHINE 2019

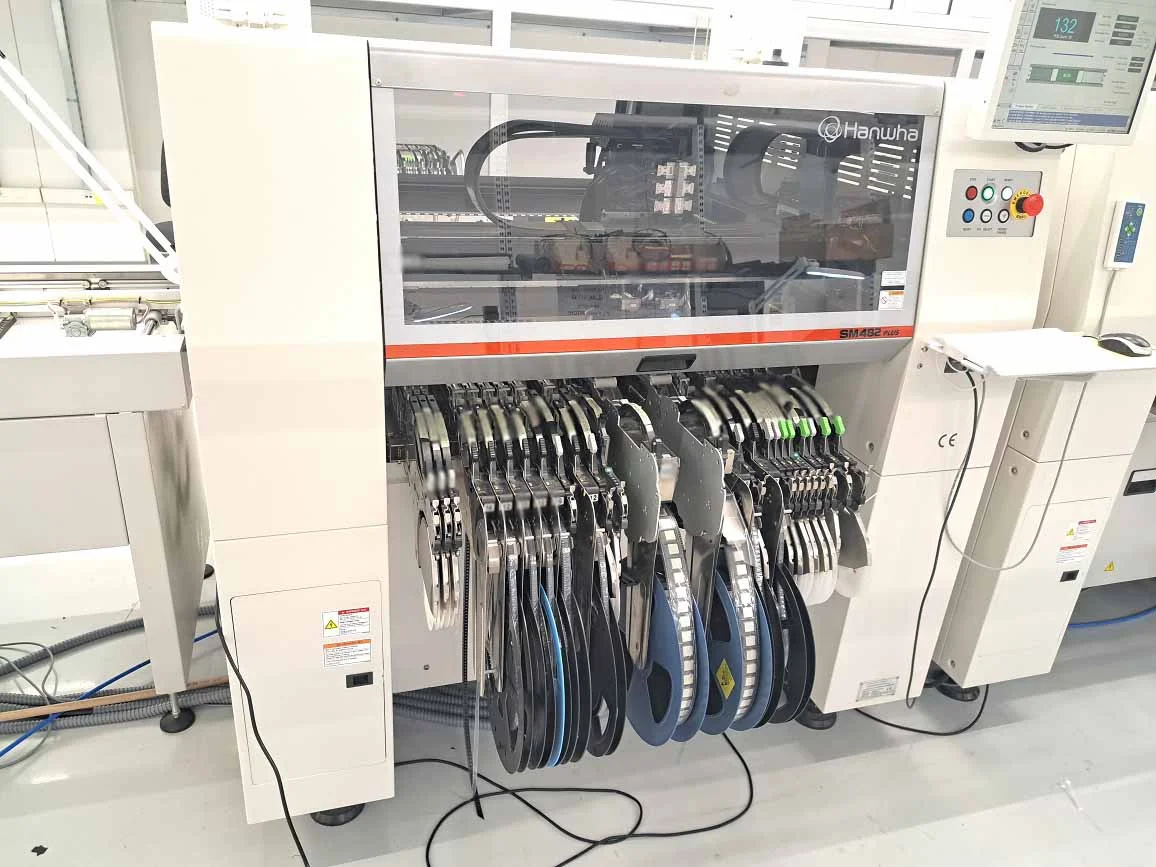

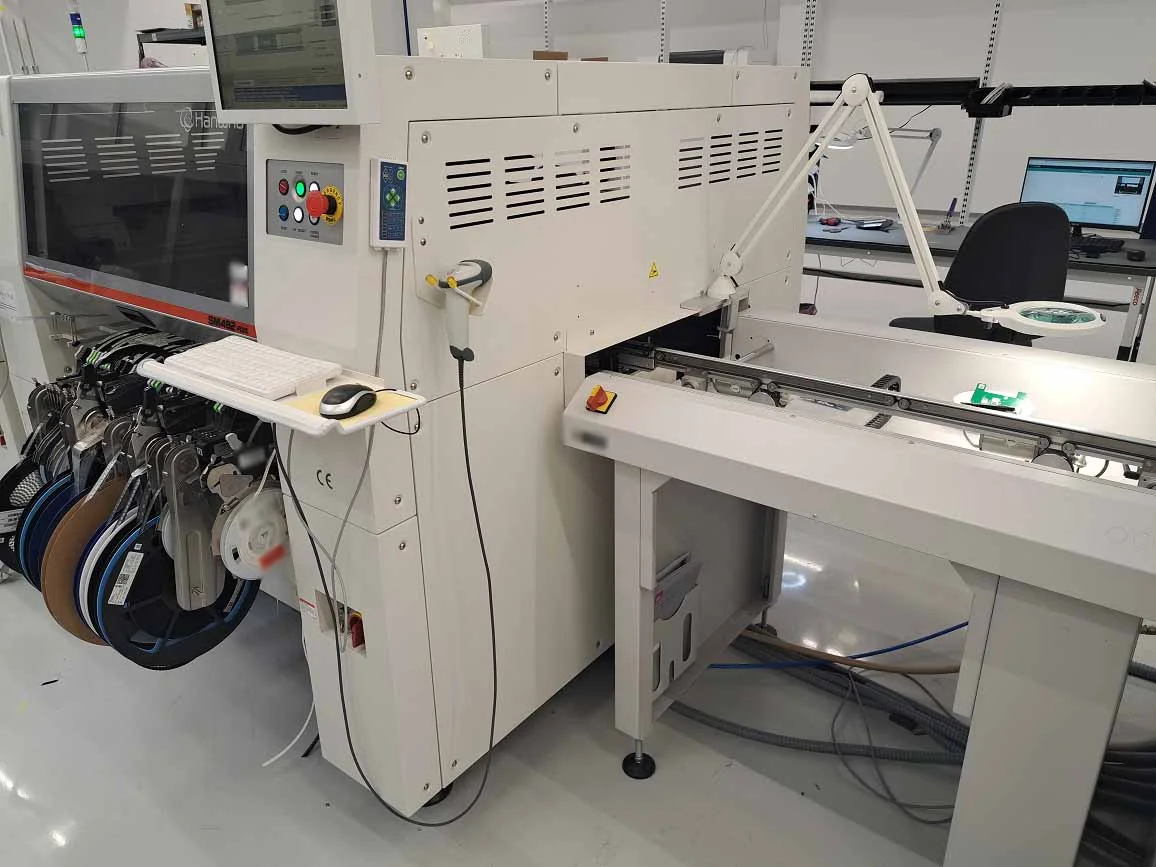

The Hanwha SM-482 Plus (2019 vintage) is a multifunction pick & place machine engineered for flexible SMT production environments requiring balanced speed and component versatility. Configured with 1 Gantry × 6 Spindles (piano-style head), the SM-482 Plus supports both chip and IC placement within a single platform. The system includes flying vision as standard with optional stage vision capability, enabling accurate alignment for a broad range of components. This unit includes the 6-spindle head assembly, flying vision system, feeder base units (standard or docking cart compatible), complete nozzle set, and standard signal cables, ensuring immediate production readiness and seamless SMT line integration. The machine handles components from 0402 (01005 metric) up to 22 mm ICs under flying vision, and up to 55 mm parts or 75 mm connectors under optional stage vision, with maximum component height up to 15 mm. While rated mounting speed is 30,000 CPH, realistic IPC-9850 practical throughput typically operates around 18,000–20,000 CPH, depending on PCB complexity, feeder configuration, and component mix. Its strong feeder capacity and compact footprint make it suitable for high-mix and medium-volume industrial production environments. Configured for standard left-to-right PCB flow SMT line integration.
