HANWHA HM520 PICK & PLACE MACHINE 2022

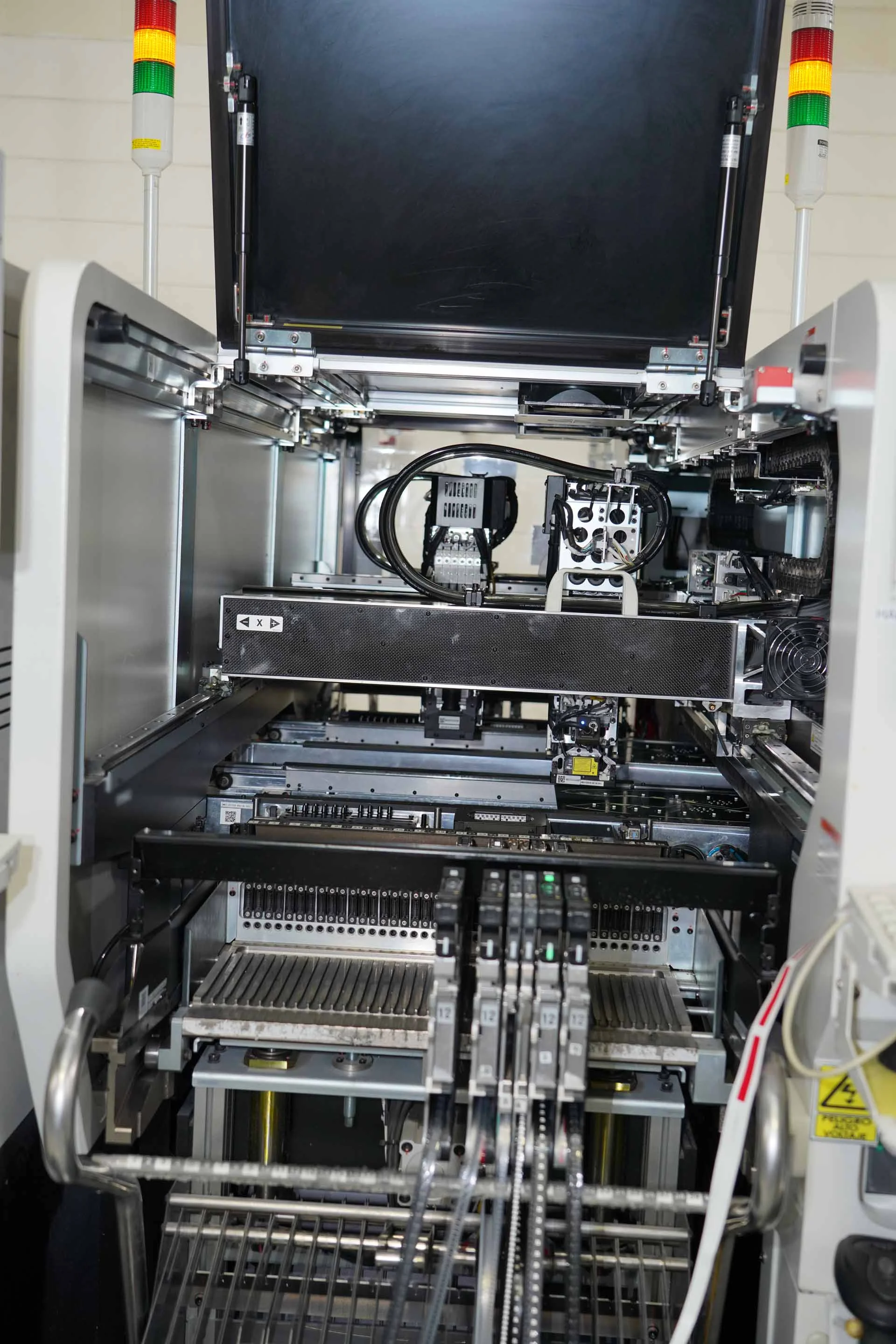

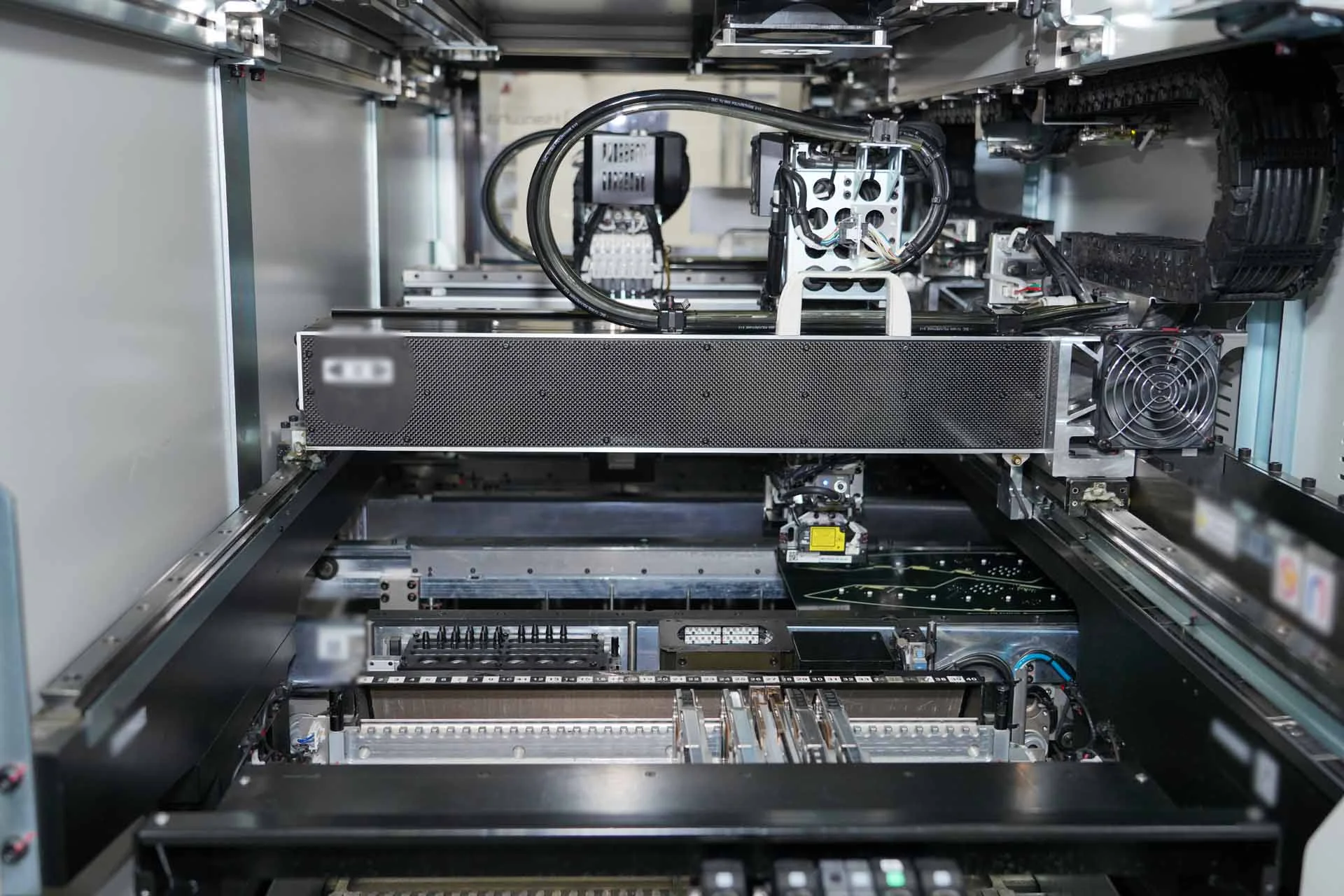

The Hanwha HM520 (2022 vintage) is a high-performance modular pick & place machine configured with the Rotary Head system, engineered for high-speed chip mounting in demanding SMT production environments. This rotary configuration features 20 spindles × 2 gantries, delivering ultra-fast chip placement performance with high repeatability and stable accuracy. The machine is capable of handling components from 0201 up to 6 mm square under rotary configuration. This unit includes the Rotary Head assembly, advanced vision alignment system, feeder base units (fixed base or docking cart compatible), complete nozzle set, and standard signal cables, ensuring full production readiness and seamless SMT line integration. While the rated mounting speed for the Rotary Head configuration is up to 80,000 CPH, realistic shop-floor throughput typically operates at approximately 40,000 to 45,000 CPH, depending on PCB complexity, feeder layout, and programming optimization. The HM520 supports both single-lane and dual-lane operation, offering production flexibility for high-volume environments. Configured for standard left-to-right PCB flow SMT line integration.
