Pick and Place | Hanwha

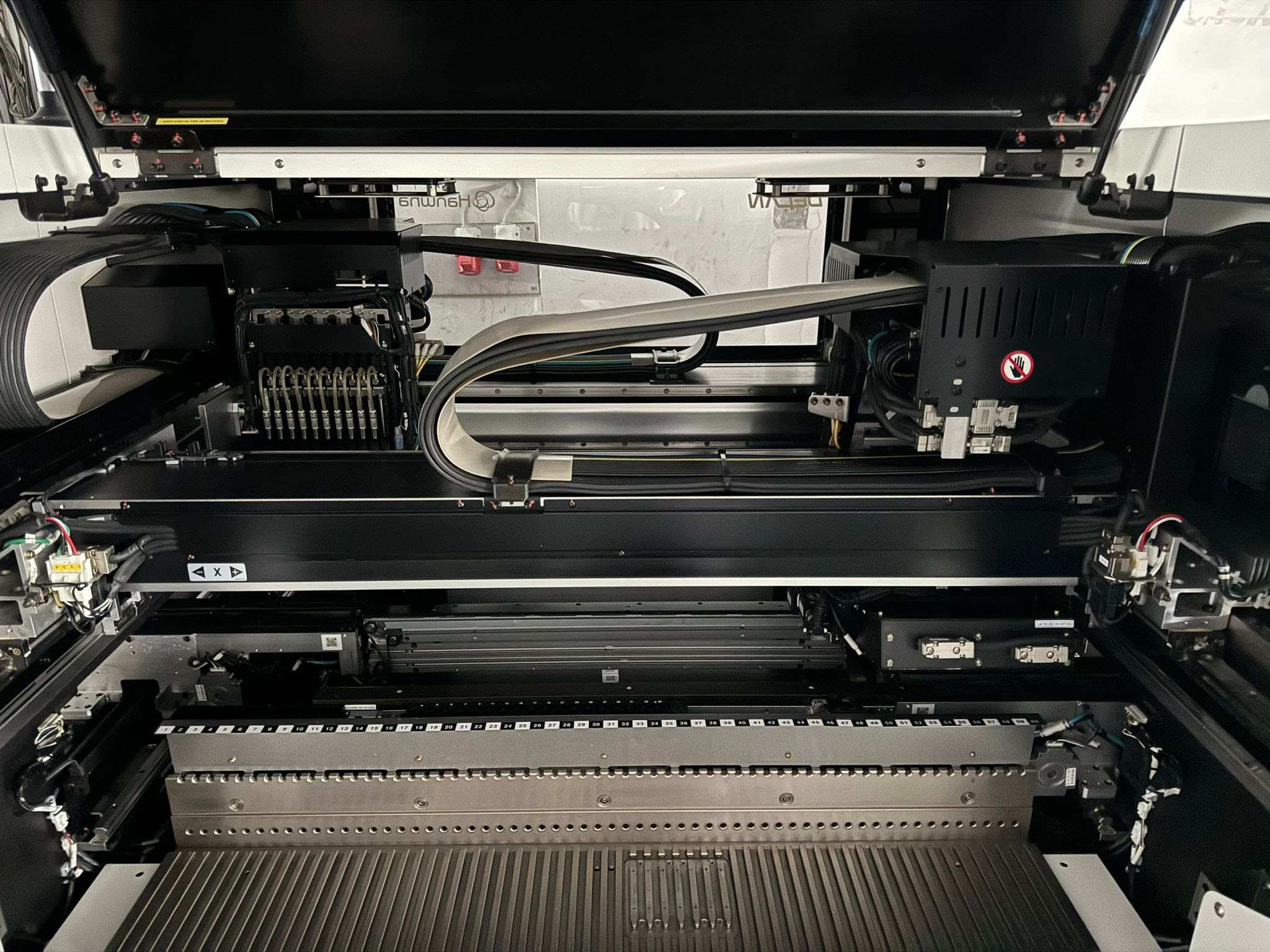

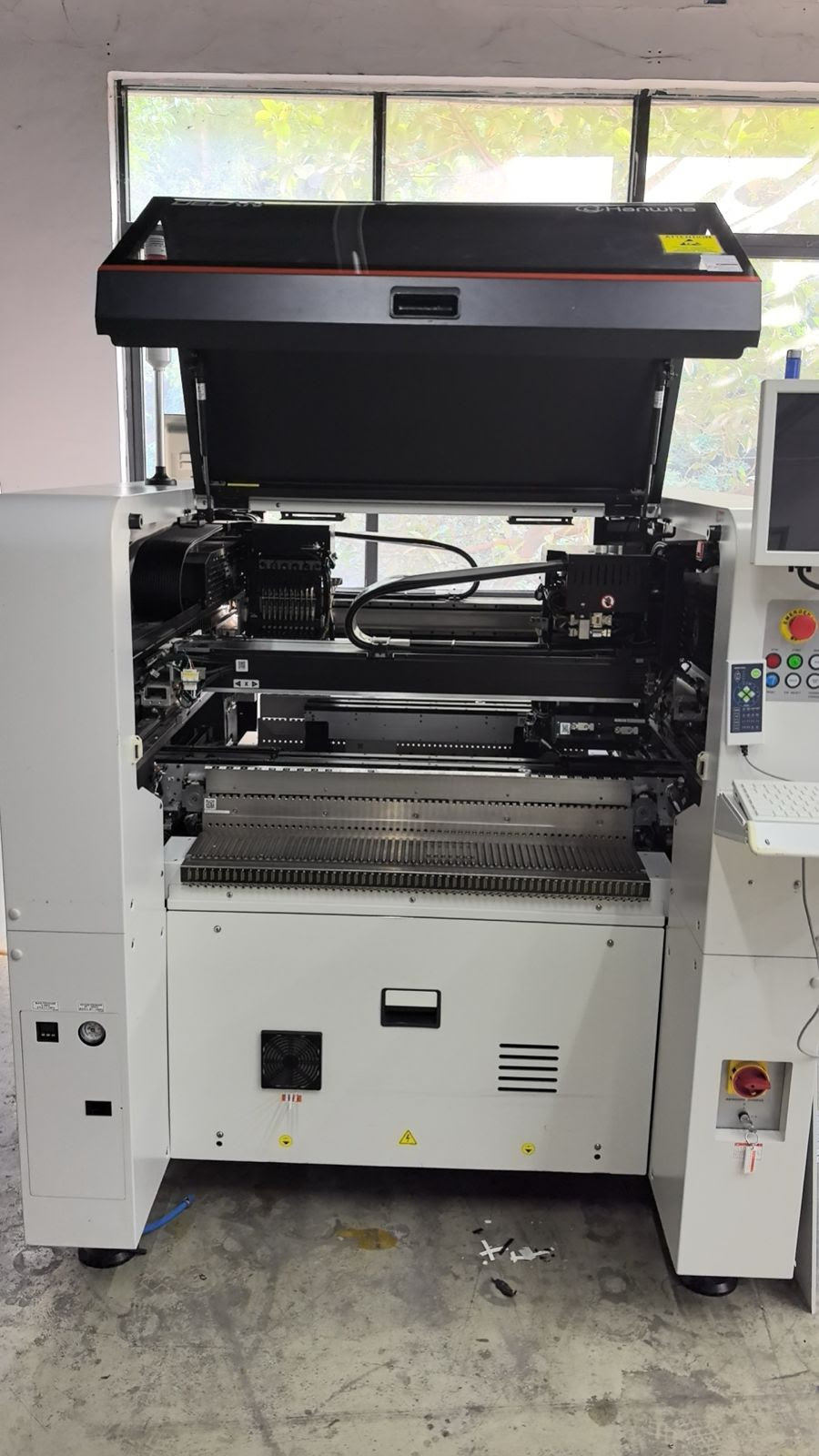

The Hanwha DECAN S2 is a high-speed flexible chip mounter engineered for advanced SMT manufacturing environments. Equipped with dual gantry heads featuring 10 spindles per head, the machine delivers high placement accuracy and consistent throughput. The DECAN S2 supports ultra-small components starting from 03015 chips up to larger components, making it suitable for both high-mix and high-volume production lines. With large feeder capacity and optional wide PCB handling, the system provides scalable flexibility for modern EMS and OEM facilities. Designed for reliability, precision, and productivity, the DECAN S2 integrates advanced vision alignment technology to ensure stable and repeatable placement performance.
Direct inquiry to administrator
| Parameter | Description / Value |
|---|---|
| Placement Speed | 92,000 CPH |
| Practical Speed | 50,000 CPH |
| Head Configuration | 2 Gantry × 10 Spindles per Head |
| Component Range | 03015 to 12mm (Height up to 10mm) |
| Placement Accuracy | ±28 µm (Chip), ±25 µm (IC) |
| PCB Size | 50 × 40 mm to 510 × 460 mm |
| Feeder Capacity | Up to 120 (8mm equivalent) |
Dual gantry high-speed placement
10 spindle per head configuration
Advanced flying vision alignment
Large feeder capacity support
Wide PCB size capability
High-mix production flexibility
Stable high-volume performance
