Pick and Place | Fuji

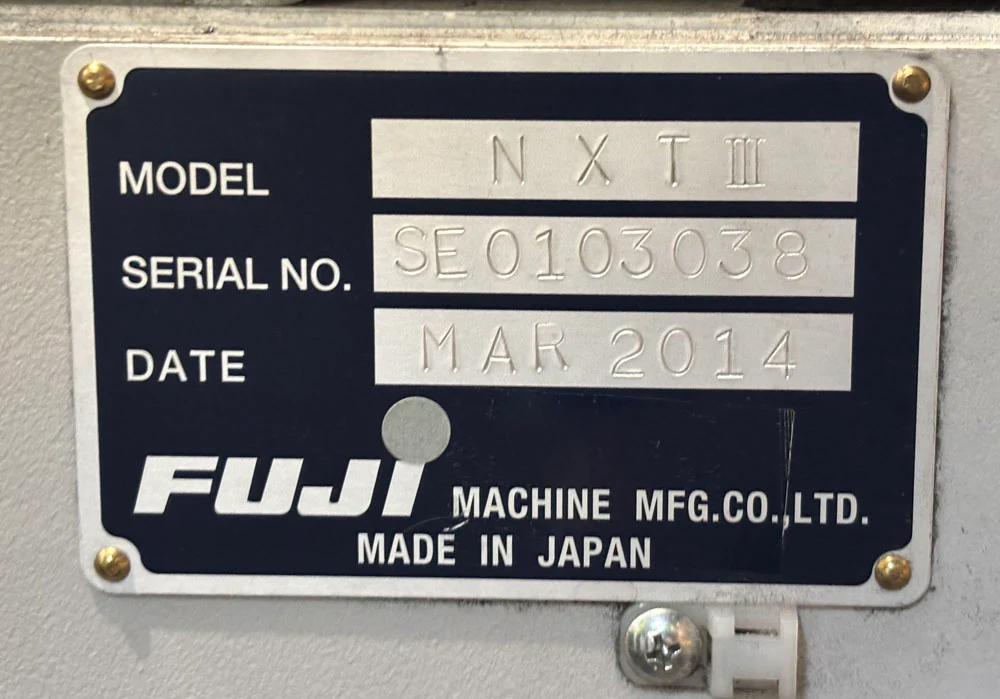

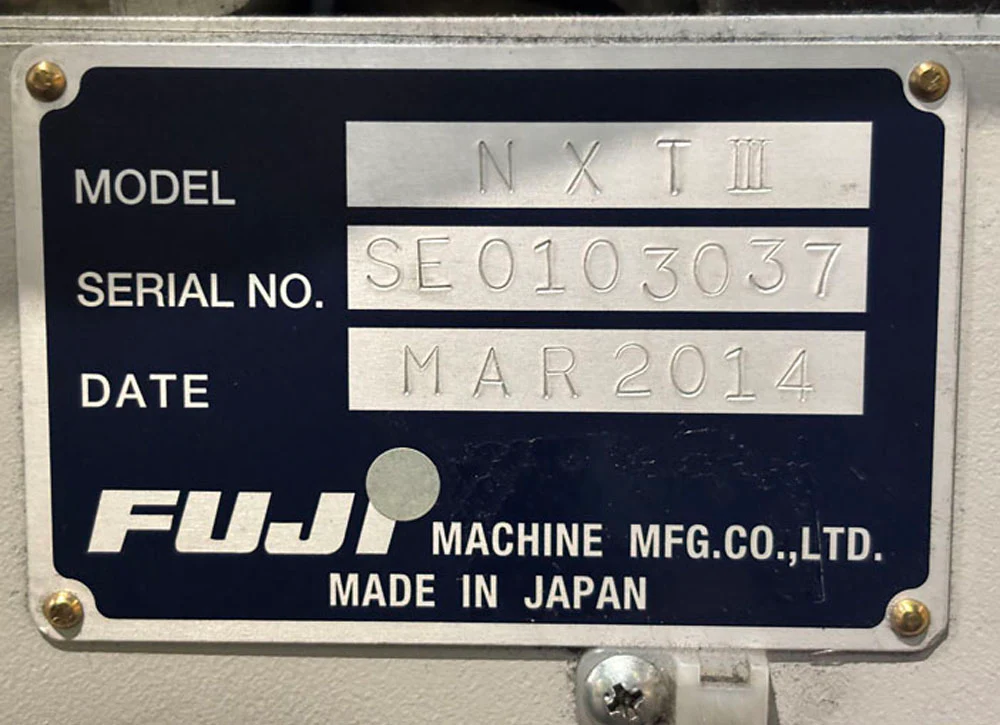

FUJI NXT III M6 III (2014 vintage) is a modular high-performance pick and place platform designed for flexible and scalable SMT manufacturing. This package includes four M6 III modules mounted on two 4M bases in single-lane configuration. The system is equipped with a mixed head configuration: 1 × H24 high-speed head 1 × H08M multi-function head 2 × H01 heads Each module includes a nozzle nest (no nozzles included). With board handling capability from 48 × 48 mm up to 610 × 610 mm, this configuration supports large PCB assemblies and high-mix production environments. Ideal for EMS and OEM manufacturers requiring modular expansion capability and balanced speed + flexibility performance.
Direct inquiry to administrator
| Parameter | Description / Value |
|---|---|
| Configuration | (4) NXT III M6 III Modules (2) 4M Bases Single Lane |
| Head Configuration | 1 × H24 1 × H08M 2 × H01 |
| Board Size Range | 48 × 48 mm to 610 × 610 mm |
| Feeder Slots per Module | 45 Slots |
Modular scalable platform
High-speed H24 head configuration
Multi-function H08M support
Large PCB capability up to 610 × 610 mm
Single lane inline configuration
45 feeder slots per module
75 KT08C feeders included
Suitable for high-mix production
Flexible head interchangeability
Industrial-grade Fuji reliability
Expandable 4M base architecture
Balanced speed and flexibility platform
