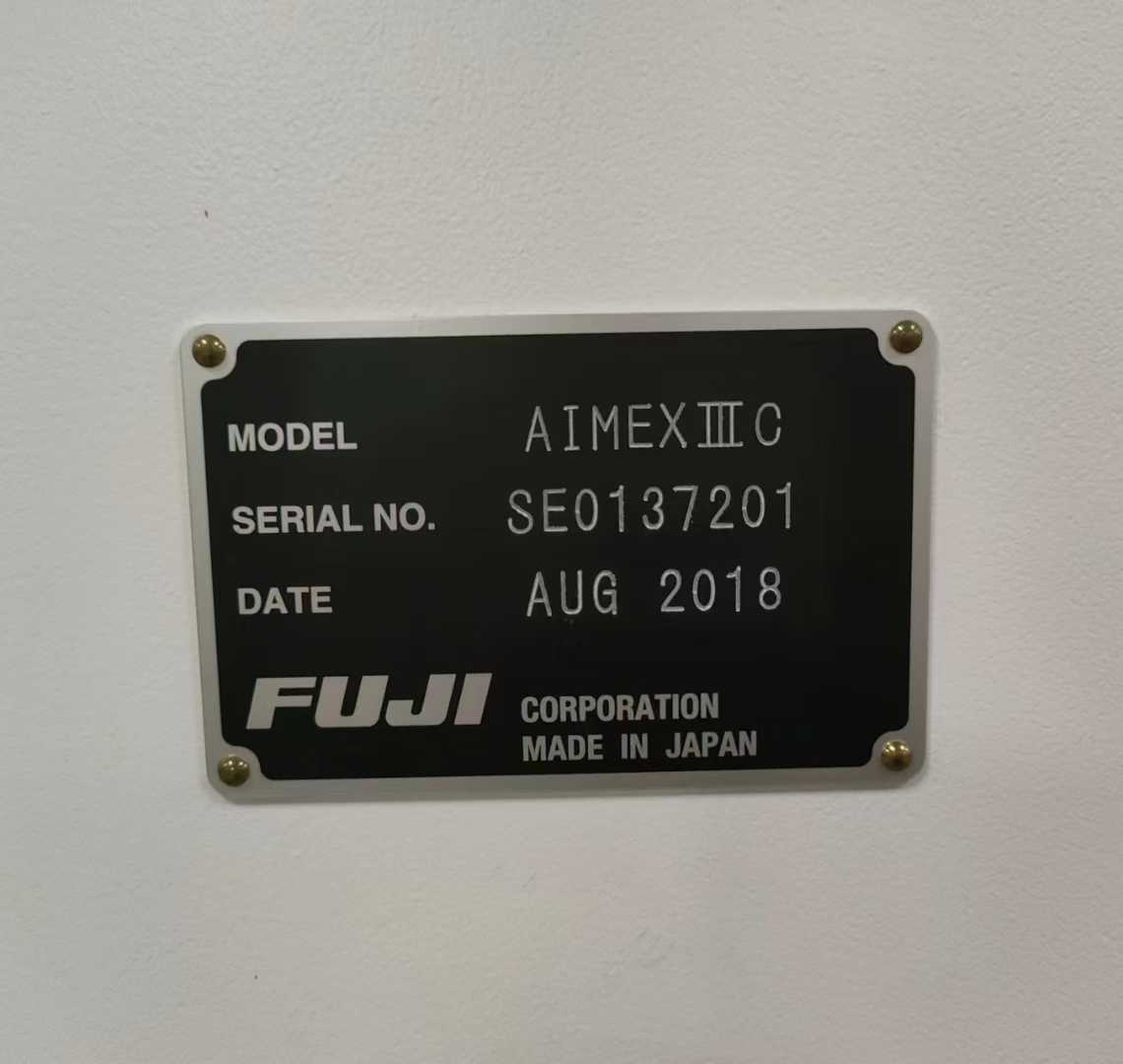

FUJI AIMEX III C DUAL ARM H24 + DX DYNA PICK & PLACE MACHINE 2018

FUJI AIMEX III C DUAL ARM H24 + DX DYNA PICK & PLACE MACHINE 2018

Pick and Place | Fuji

Used

Description

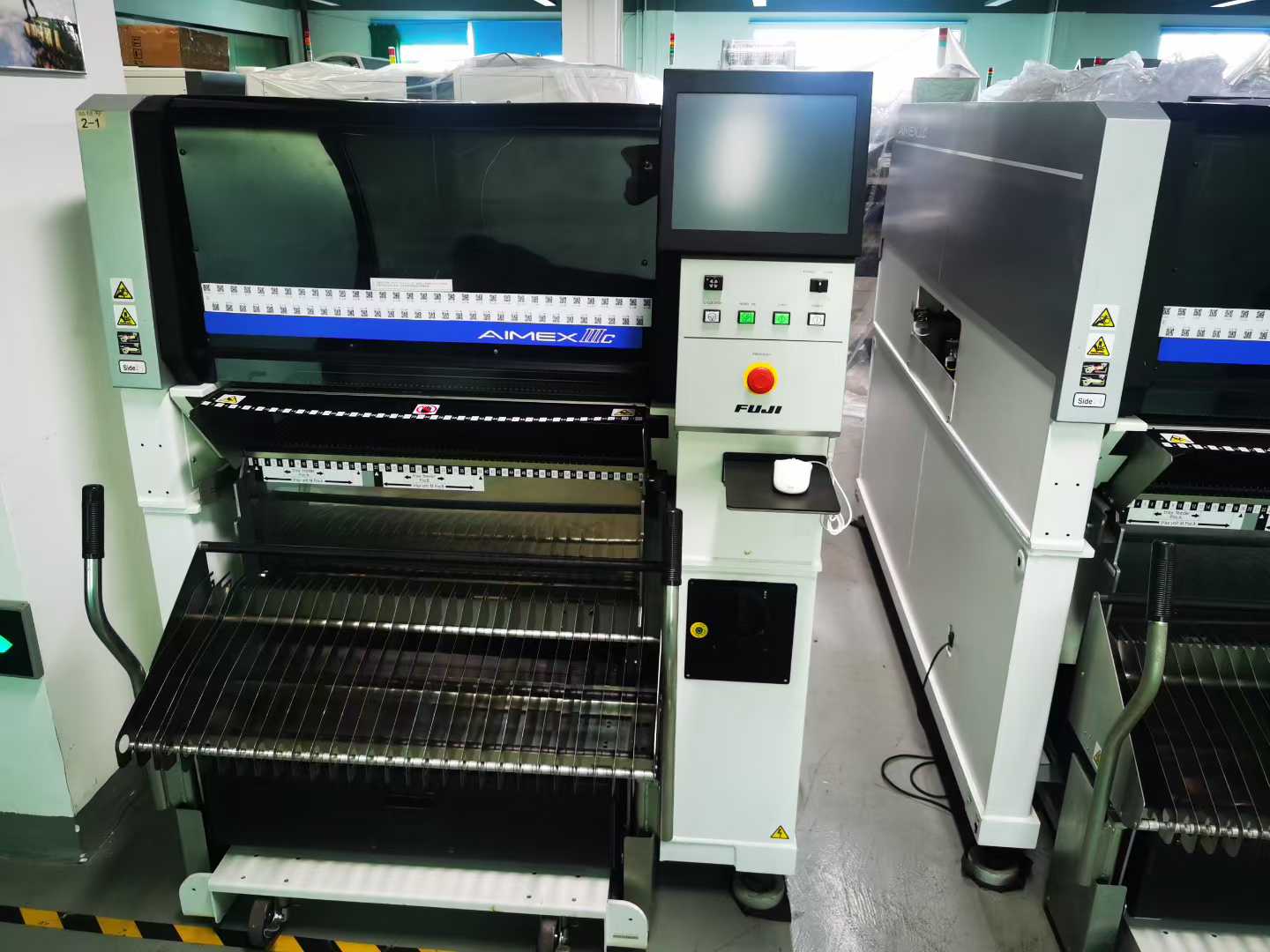

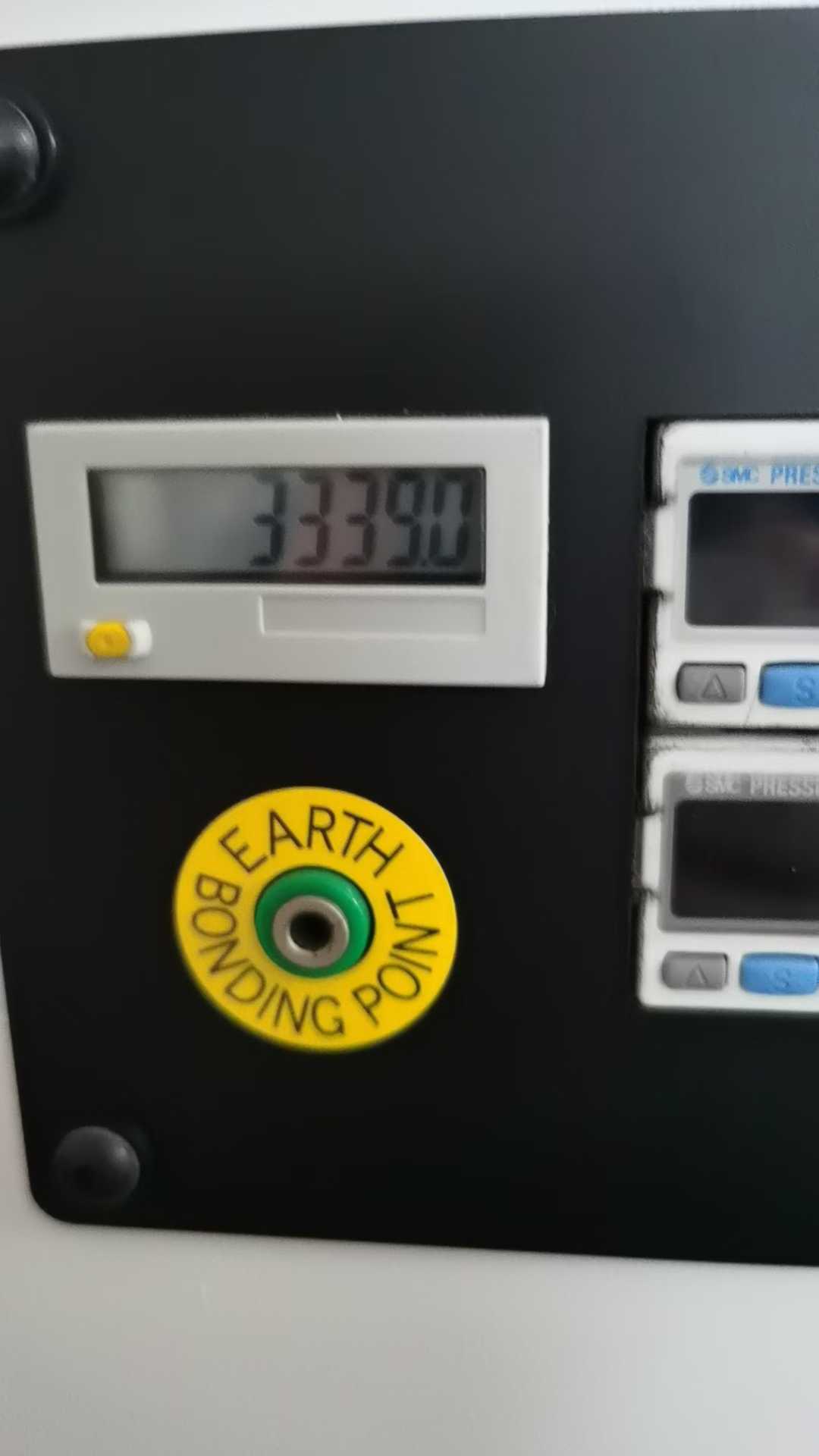

The Fuji AIMEX IIIc (2018) is a modular dual-arm pick and place machine configured with H24S high-speed heads and DX Dyna 12-nozzle heads. This configuration offers an excellent balance of high-speed chip placement and flexible large-component handling. The H24S head enables high throughput for chip components, while the DX Dyna head supports a broader component range including ICs and medium-sized parts. With dual-arm operation, the system provides increased productivity and optimized line performance. Suitable for EMS and OEM production environments requiring stable, high-mix, and medium-to-high volume manufacturing. Machine operating hours: Under 3000 hours.

Request Quote

Direct inquiry to administrator

Stock Status

Technical Specifications

Parameter	Description / Value
Practical Mounting Speed (Dual – H24S Standard Mode)	35,000 CPH
Practical Mounting Speed (Dual – H24S Productivity Mode)	40,000 CPH
Practical Mounting Speed (Dual – DX Heads)	25,000 CPH
Total Practical Mounting Speed	100,000 CPH
Placement Accuracy (3σ)	±0.025 mm (chips) / ±0.05 mm (ICs)
Head Configuration	Dual Arm – H24S + DX Dyna (12-nozzle)
Component Range (H24S)	0201 to 6 mm
Component Range (DX Dyna)	03015 to 20 mm
Applicable PCB Size (1 Lane)	50 × 50 mm to 774 × 710 mm
Applicable PCB Size (2 Lane)	50 × 50 mm to 370 × 710 mm
Feeder Capacity (8 mm tape)	130

Key Performance Features

Dual arm modular platform

H24S high-speed chip placement head

DX Dyna 12-nozzle flexible head

High-mix production capability

Large PCB size support

High feeder capacity

Stable dual-gantry productivity

Low operating hours under 3000
