Mirtec MV-6e Omni 3D AOI 2016

Automated Optical Inspection | Mirtec

Used

Description

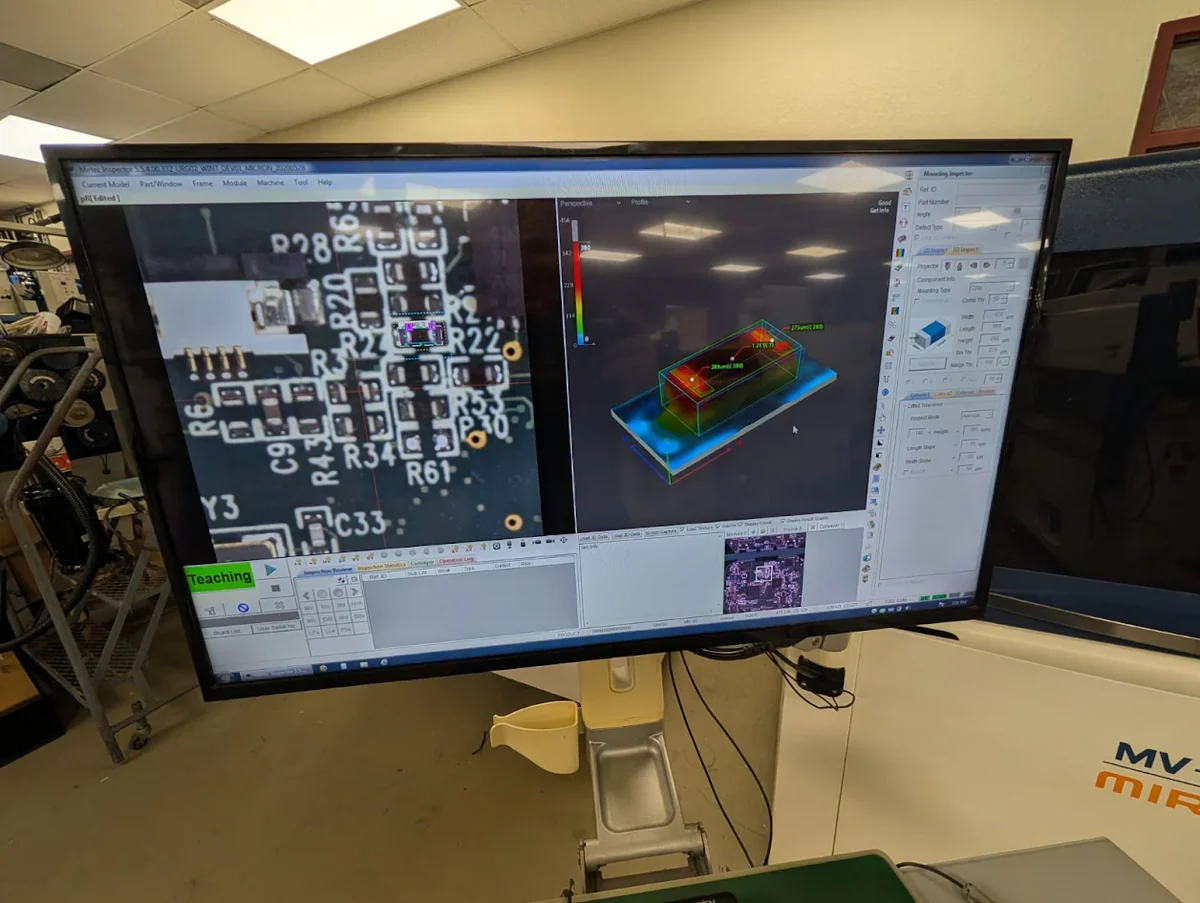

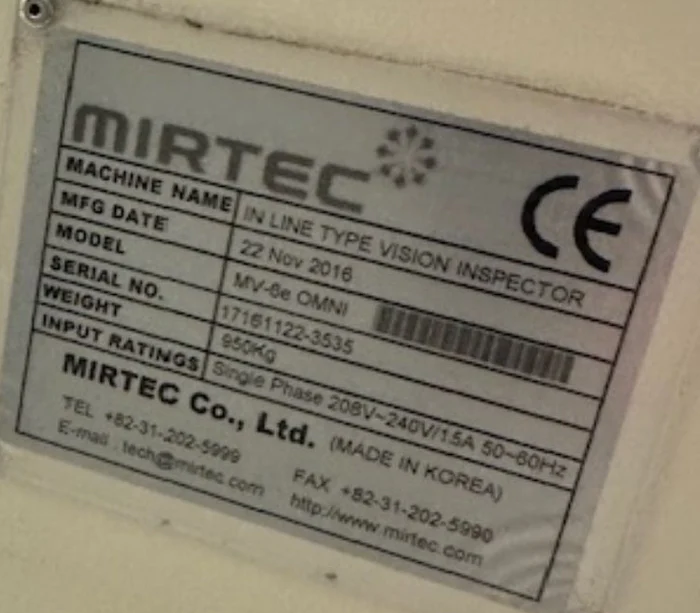

MIRTEC MV-6e Omni (DOM: 11/2016, SN: 17161122-3535) is a high-performance 3D Automated Optical Inspection system designed for accurate solder joint and component inspection in SMT production lines. The system is equipped with ISVI 15M_ZROT 15MP top camera and MIR 10M (15F) side-view cameras, combined with 8-phase color lighting to ensure precise 3D measurement and shadow-free inspection. It supports comprehensive inspection of solder volume, height, coplanarity, lifted leads, bridging, missing components, and polarity errors. Powered by Mirtec Inspector 5.5.400.332 software on Windows 7 platform, the MV-6e Omni delivers stable inline performance and detailed defect classification. Suitable for fine-pitch, high-density PCB assemblies in EMS and OEM manufacturing environments. Fully tested before dispatch.

Request Quote

Direct inquiry to administrator

Stock Status

Technical Specifications

Parameter	Description / Value
Inspection Type	3D Inline AOI
Resolution	10 µm
Top Camera	15 MP
Side Cameras	4 × 10 MP
Camera Configuration	Vertical + 3D Side View
Operating System	Windows 10

Key Performance Features

True 3D solder inspection

8-phase color lighting technology

15MP high-resolution top camera

Multi-angle side inspection capability

Accurate solder height and volume measurement

Fine-pitch compatible

Stable inline integration

Advanced defect classification

Reliable industrial AOI platform

Suitable for high-mix SMT production
