Automated Optical Inspection | Mirtec

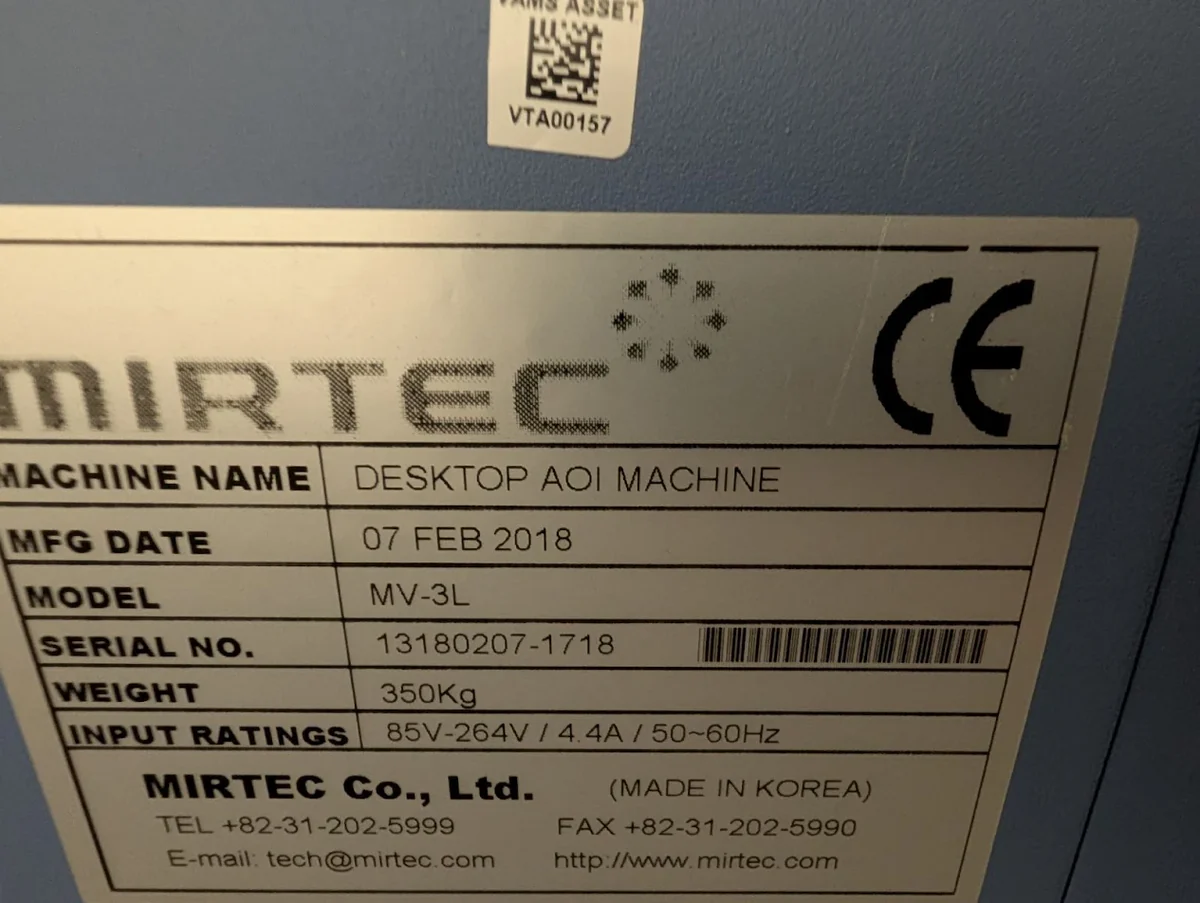

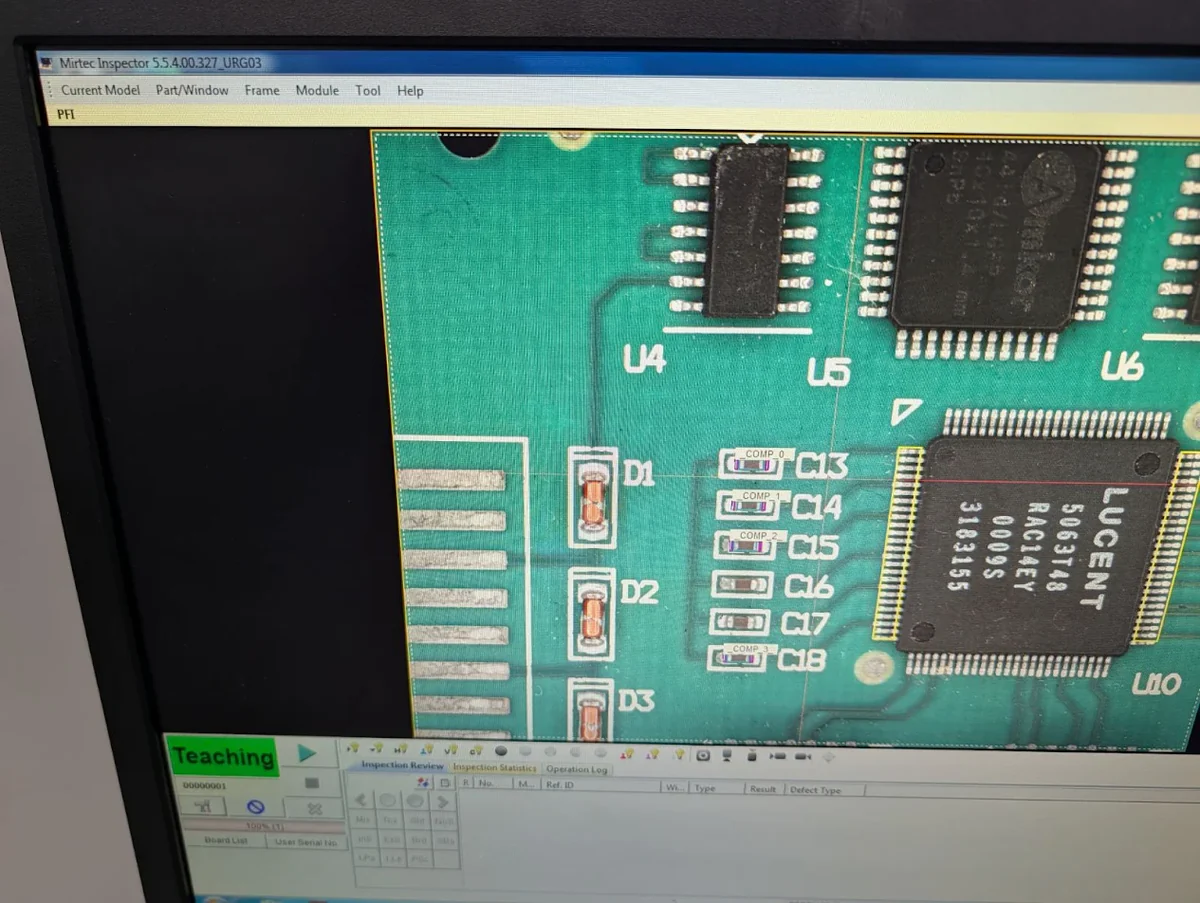

MIRTEC MV-3L (DOM: 02/2018, SN: 13180207-1718) is a benchtop Automated Optical Inspection system designed for flexible SMT inspection environments including prototype, repair, and low-to-mid volume production lines. The system is equipped with 5 high-resolution 10MP cameras, including 1 top-down camera and 4 side-view cameras, enabling accurate inspection of solder joints, lifted leads, bridging, polarity, and component placement defects. Powered by Mirtec Inspector 5.5.400.327 software running on Windows 7 platform, the MV-3L delivers stable inspection performance with advanced defect classification and detailed image analysis. Ideal for EMS, OEM, R&D labs, and quality control environments requiring compact yet powerful inspection capability. Fully tested before dispatch.
Direct inquiry to administrator
| Parameter | Description / Value |
|---|---|
| Inspection Type | 2D AOI (Multi-Angle Camera Inspection) |
| Resolution | 5 µm |
| Top Camera | 10 MP |
| Side Cameras | 4 × 10 MP |
| Camera Configuration | 5 Cameras |
| Operating System | Windows 7 |
Compact benchtop design
5-camera multi-angle inspection
10MP high-resolution imaging
Side-view solder joint inspection capability
Accurate defect detection
Suitable for R&D and low-volume production
Advanced image processing software
Stable inspection platform
Ideal for quality control applications
